Moxa continues to expand its range of Arm-based computers by introducing systems that combine robust 64-bit dual-core processing capabilities with strict adherence to IEC 62443-4-2 security standards. This commitment to industrial-grade design supports enhanced network efficiency, facilitating the seamless management of sophisticated data communication requirements across Factory Automation, Oil and Gas, and renewable Energy sectors.

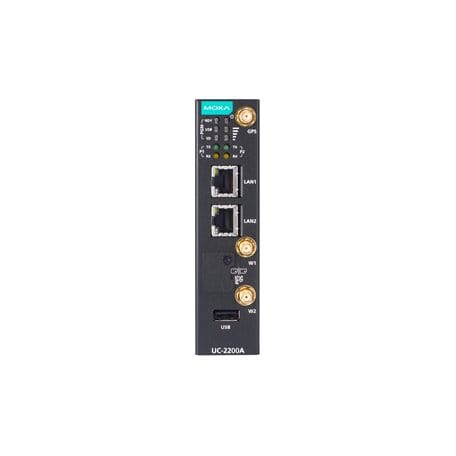

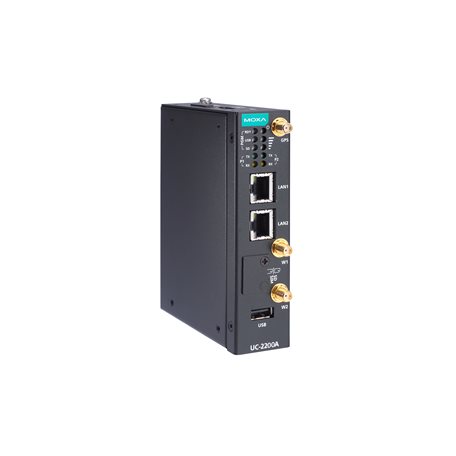

The UC-1200A Series and UC-2200A Series have been engineered specifically for embedded data acquisition applications. Their compact form factor, efficient edge computing performance, and well-balanced array of I/O interfaces make them ideally suited for deployment in space-constrained environments. In addition, these computers feature advanced security enhancements aligned with IEC 62443-4-2, reinforcing protection against cybersecurity threats and ensuring uninterrupted data transmission for mission-critical operations.
Features
Compact Design, Better Results
The UC-1200A and UC-2200A Series 64-bit Arm-based computers offer an outstanding ratio of processing power to energy consumption, consuming approximately one-third the energy required by Moxa industrial computing devices. This efficient design delivers significant cost savings and improved performance. Both series are equipped with an optimal set of I/O interfaces, including 2 Gigabit LAN ports and 2 RS-232/422/485 serial ports, providing a versatile solution for diverse industrial data communication needs.
Enhanced Security
The systems are fully compliant with the IEC 62443-4-2 SL2 standard. A Secure Boot function, underpinned by a Trusted Platform Module (TPM), safeguards both hardware and software, ensuring decryption only on authorized Moxa devices. The failback mechanism enables automatic system recovery to the last secure operational state in cases of critical update failures or detection of unauthorized software changes. Moxa further enhances cybersecurity readiness by offering a security hardening guide and diagnostic tools to assist users in maintaining compliance with the IEC 62443-4-2 SL2 standard.
Easy to Deploy and Manage
The Moxa Computer Interface Manager (MCIM) delivers a unified software framework for accessing and configuring non-standard computer interfaces, simplifying programming across different Moxa Arm-based platforms. Moxa Connection Manager (MCM) facilitates the administration of LAN and WAN communications, including Wi-Fi, cellular, and Ethernet networks. Combined with the MXview One software platform for real-time device monitoring and data visualization, these tools streamline network deployment and significantly reduce maintenance time for both IT and OT teams.
Industrial-grade Reliability
Designed for use in extreme conditions, the UC-1200A and UC-2200A Series of Moxa Arm-Based computer offer an extended operating temperature range from -40 to 70°C. Certified to CID2, CE, FCC, ATEX, and UL standards, these systems are suited for harsh environments encountered in industries such as oil and gas, factory automation, and renewable energy. Running on Moxa industrial Linux with a guaranteed 10-year long-term support plan, these Arm-based computers deliver high shock and vibration resistance, a Mean Time Between Failures (MTBF) approaching one million hours, and are backed by a comprehensive 5-year warranty to ensure long-term operational stability and reliability.
Product Highlights
| Moxa Solutions |
|---|
| CPU |
| Memory |
| Storage Slot |
| Interface |
| Wireless |
| Security |
| Software |
| Wide Temperature |
| Hazardous Location Certification |
Application

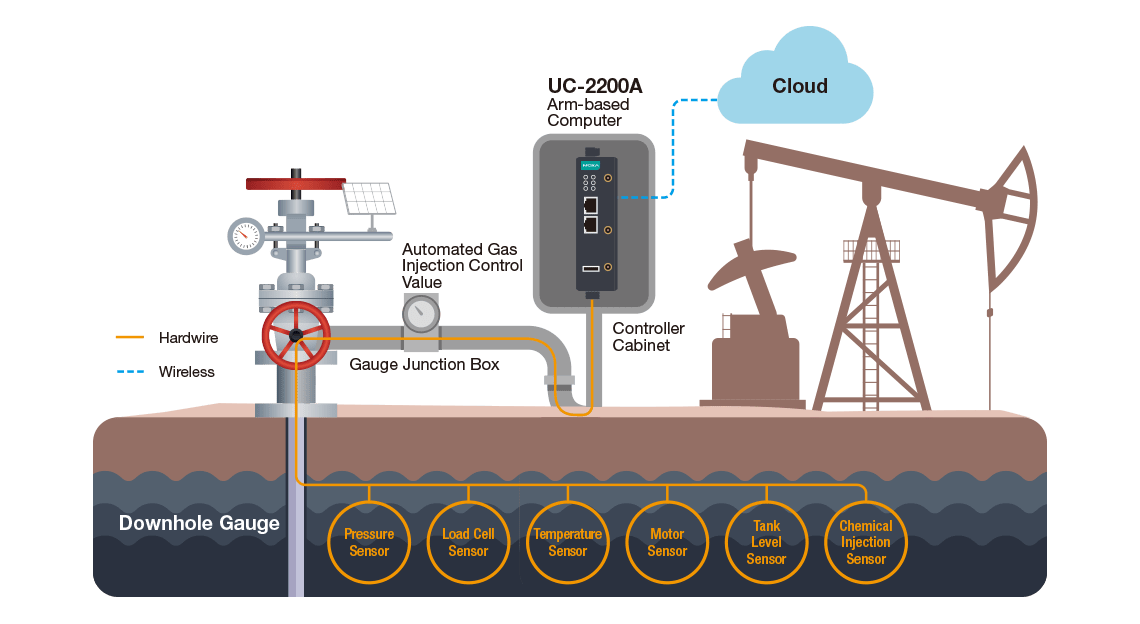

Efficient Wellhead Monitoring System With 64-bit Arm-based Computers and LTE Capability
Reliable, precise, and rugged wellhead monitoring systems are essential for analyzing pressure and temperature information for wells based on the data that is continuously collected from the end devices. Moxa’s UC-2200A Series 64-bit Arm-based computers, designed as embedded data-acquisition gateways, are ideal for data preprocessing and transmission of relevant information to the cloud in real time.

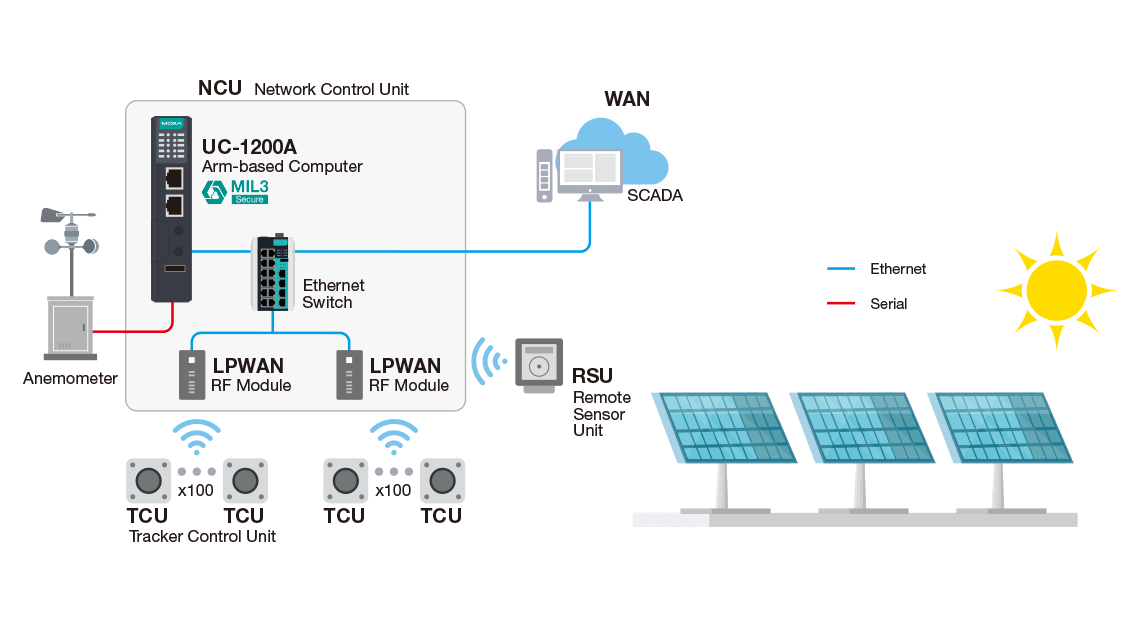

Empower Solar Tracking Systems With High-performance Compact Arm-based Computers
Moxa’s UC-1200A computer is deployed within the Network Control Unit (NCU) to preprocess data from the anemometer and transmit commands to the Tracker Control Unit (TCU). This communication is facilitated through connections with a switch and a Zigbee module, enabling efficient execution of commands. The UC-1200A is a 64-bit Arm-based computer compliant with the IEC 62443-4-2 security standard that offers data preprocessing, device monitoring, information transmission, and instruction provisioning, enabling seamless control of the solar tracking system.
*Easy World's Moxa's official distributor in the Middle East. For any further information please contact us via sales@eworldme.com.
