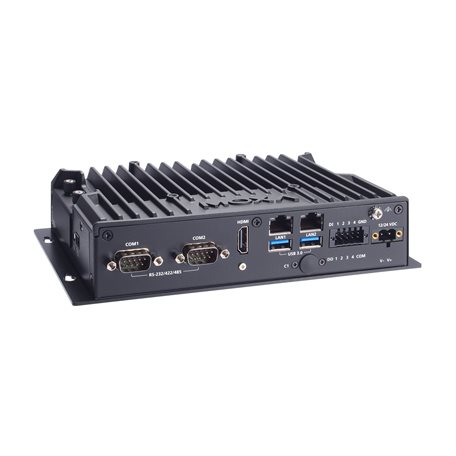

MOXA BXP-A101-E2-T Introduction
Introducing the MOXA BXP-A101-E2-T Industrial Computer (part number BXP-A101-E2-T), a compact and efficient computing solution in the Moxa Industrial Computing lineup. Classified within the Moxa x86 Computers category and part of the dependable Moxa BXP-A101 Series, this device excels in industrial settings requiring ruggedness and reliable operation.
Featuring the Intel Atom® x6211E processor combined with 8 GB of memory, the BXP-A101-E2-T delivers consistent and energy-efficient performance. Its fanless, box-type construction ensures minimal upkeep and quiet operation. The compact design and wall mounting capability make it an excellent choice for installations where space is limited yet dependable computing power is needed.
Storage flexibility comes from dual external slots—1 x CFast and 1 x SD—both housed behind a removable cover to facilitate easy maintenance. Built to operate within an extended temperature range from -30 to 70°C, this industrial computer withstands the toughest environments. With 4 digital inputs, 4 digital outputs, and 1 HDMI port, it provides versatile connectivity to support various automation and monitoring applications.
MOXA BXP-A101-E2-T Certifications
MOXA BXP-A101-E2-T Features
- Intel Atom® x6211E
- 8 GB Memory
- Box-type computer with a fanless design
- Compact size to fit most field applications
- External dual storage with a removable cover design for easy maintenance
- -30 to 70°C operating temperature range
You can place an order online for the MOXA BXP-A101-E2-T Industrial Computer and enjoy the convenience of delivery to your specified location at a reasonable price. Our dedicated team in the Middle East branches (UAE (Dubai, Abu Dhabi), KSA (Al Khobar, Riyadh), Kuwait, Qatar, and Oman) is ready to assist with any inquiries and ensure a smooth buying process.
Industrial Computer : Computer | |
CPU | Intel Atom® x6211E |
Supported OS | Windows 11 IoT Enterprise LTSC 2024 64-bit; Windows 11 Professional 64-bit; Windows 10 IoT Enterprise LTSC 2021 64-bit; Debian 12 (kernel 6.10); Debian 12 (kernel 6.10); Ubuntu 22.04 LTS (kernel 5.15); RHEL 9 (kernel 5.14) |
OS (pre-installed) | - |
System Memory | CFast slot x 1 (SATAIII interface); SD slot x 1, SD 3.0 interface (SDHC/SDXC); M.2 M-key 2242 slot x 1 |
Graphics Controller | Intel® UHD Graphics |
Storage Slot | CFast slot x 1 (SATAIII interface); SD slot x 1, SD 3.0 interface (SDHC/SDXC) |
Industrial Computer : Interface | |
LAN | - |
Magnetic Isolation Protection | 1.5 kV (built-in) |
Serial Ports | 2 x RS-232/422/485 ports (software-selectable, DB9 male connector) |
Digital Input/Output Channels | 4 x DIs, 4 x DOs |
Expansion Slot | 1 x mPCIe slots |
USB | USB 3.0 hosts x 2, type-A connectors |
Industrial Computer : Serial Communication Parameters | |
Data Bits | 5, 6, 7, 8 |
Stop Bits | 1, 1.5, 2 |
Parity | None, Even, Odd, Space, Mark |
Flow Control | RTS/CTS, XON/XOFF, Automatic Data Direction Control (ADDC) for RS-485, RTS Toggle (RS-232 only) |
Baudrate | 50 bps to 115.2 kbps |
Industrial Computer : Serial Signals | |
RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
RS-485-2w | Data+, Data-, GND |
Industrial Computer : LED Indicators | |
System | 1 x Power |
LAN | 2 per port (10/100/1000 Mbps) |
Serial | 2/2 |
Industrial Computer : Power Requirements | |
Input Voltage | 12/24 VDC |
Input Current | - |
Power Consumption | 50 W |
Industrial Computer : General | |
Alert Tools | - |
Automatic Reboot Trigger | Built-in WDT |
MTBF | 1,581,038 hrs |
Industrial Computer : Physical Characteristics | |
Dimensions | 207 x 116.1 x 44.5 mm (8.14 x 4.57 x 1.75 in) |
Housing | Metal |
Operating temperature | -30 to 70°C (-22 to 158°F) |
Storage Temperature | -40 to 70°C (-40 to 158°F) |
Relative humidity | 5 to 95% (non-condensing) |
Standards and Certifications | EN 55032/35, CISPR 32, FCC Part 15B Class A, BSMI, EMS, IEC 62368-1, UL 62368-1, IEC 60068-2-27, IEC 60068-2-6. IEC 60068-2-64, ISTA 1A, ISTA 1A |
Weight | 1,225 g (2.7 lb) |
Mounting | Wall mounting |
