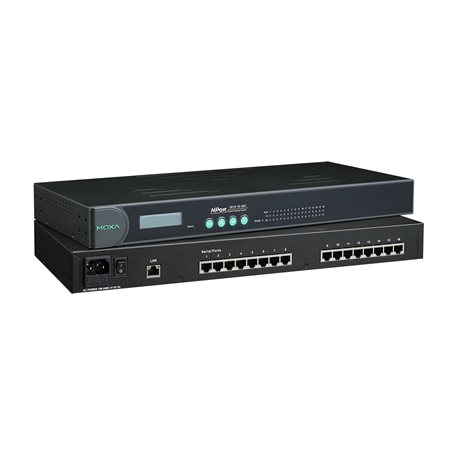

MOXA NPort 5610-16 Introduction
The Moxa NPort 5610-16 is a powerful solution for industrial edge connectivity that instantly enables serial devices to become network-ready. It is perfect for connecting your existing hardware to IP-based Ethernet LANs. The Moxa NPort 5600 series offers a compact design with future-proof features, such as centralized management of serial devices and distributed management hosts over the network. With socket modes that include TCP server, TCP client, and UDP, and options to configure via Telnet, web browser, or Windows utility, this NPort 5610-16 serial to Ethernet converter ensures reliable and versatile operation. The NPort 5610-16 supports a standard 19-inch rackmount size for seamless integration into existing setups.
16-Port RS-232 Rackmount Device Server
The NPort 5610-16 serial device server offers outstanding connectivity with 16 RS-232 ports that deliver robust performance for high-demand industrial environments. This Moxa serial converter includes 1 x 10/100BaseT(X) port (RJ45 connector) with 1.5 kV magnetic isolation protection to ensure secure and stable Ethernet communication. Each of the 16 ports uses an 8-pin RJ45 connector and adheres to RS-232 serial standards, which makes the Moxa NPort 5610-16 device server a reliable and efficient choice for serial-to-network integration. As part of the Moxa nport series, the Moxa NPort 5610-16 serial converter ensures seamless compatibility and high performance.
Reliable Input Voltage and Rugged Construction
The Moxa NPort 5610-16 general device server is built for demanding industrial environments, such as Factory Automation. Operating on an input voltage of 100 to 240 VAC at 47 to 63 Hz, the NPort 5610-16 converter draws 141 mA at 100 VAC, offering consistent power efficiency. The metal housing and 19-inch rackmount installation of this serial-to-Ethernet device server ensure durability and compatibility with standard rack systems. Weighing 2,490 g (5.49 lb), the Moxa NPort 5610-16 serial to Ethernet device server measures 480 x 45 x 198 mm with ears or 440 x 45 x 198 mm without. Designed for a wide range of environments, the NPort 5610-16 Ethernet to serial device server supports an operating temperature range of 0 to 60°C (32 to 140°F) and can be stored in conditions ranging from -20 to 70°C (-4 to 158°F). More technical details can be found in the Moxa NPort 5610-16 datasheet.
MOXA NPort 5610-16 Certifications
The Moxa NPort 5610-16 meets rigorous certification standards, ensuring safety and performance in diverse applications. With compliance in safety, EMC, EMI, and EMS, this nport server is suitable for use in industrial and medical environments. The serial to Ethernet converter is certified to EN 55011: 2007+A2: 2007 Class A (Group 1) and EN 60601-1-2: 2007, which guarantees adherence to stringent medical standards. As part of Moxa's reliable line of serial device servers, the NPort 5610 continues to set the standard for general device servers, delivering unmatched versatility and reliability.
MOXA NPort 5610-16 Features
- 1 x 10/100Mbps T(x) port and 16 x RS-232 Serial ports
- 100 to 240 VAC input power
- Metal body
- 0 to 55°C operating temperature
Place an order online for the MOXA NPort 5610-16 Serial to Ethernet Rackmount Serial Device Server and enjoy the convenience of delivery to your specified location at a reasonable price. Our dedicated team in the Middle East (UAE (Dubai, Abu Dhabi), KSA (Al Khobar, Riyadh), Kuwait, Qatar, and Oman) is ready to assist with any inquiries and ensure a smooth buying process.
