Name: MOXA SDS-G3016-2GSFP-T Smart Ethernet Switch
Brand: MOXA
Price: 1011.00 AED
Availability: InStock

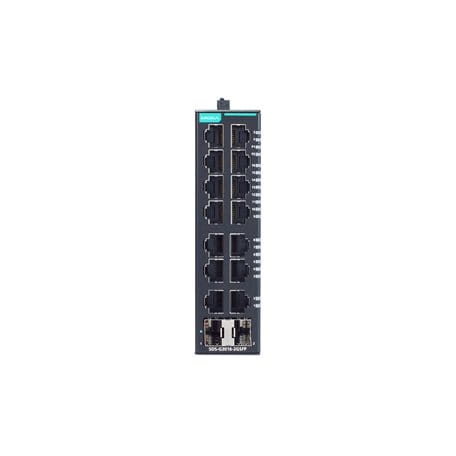

MOXA SDS-G3016-2GSFP-T Smart Ethernet Switch

MOXA SDS-G3016-2GSFP-T Smart Ethernet Switch

This product qualifies for free shipping

For further information about our shipping policy please click here.

Stock: In Stock
Model: SDS-G3016-2GSFP-T

MOXA

Product Views: 2272

AED 3,720

Add to Cart

BUY NOW ENQUIRE NOW

Add to Wish List Compare this Product

Datasheet

MOXA SDS-G3016-2GSFP-T Introduction

The SDS-G3016 smart Ethernet switch is the ideal product for IA engineers and automation machine builders to make their networks compatible with the vision of Industry 4.0. By breathing life into machines and control cabinets, the smart switch simplifies daily tasks with its easy configuration and easy installation. In addition, it is monitorable and is easy to maintain throughout the entire product life cycle.

The most frequently used automation protocols—including EtherNet/IP, PROFINET, and Modbus TCP—are embedded in the SDS-G3016 switch to provide enhanced operational performance and flexibility by making it controllable and visible from automation HMIs. It also supports a range of useful management functions, including IEEE 802.1Q VLAN, port mirroring, SNMP, warning by relay, and a multi-language Web GUI.

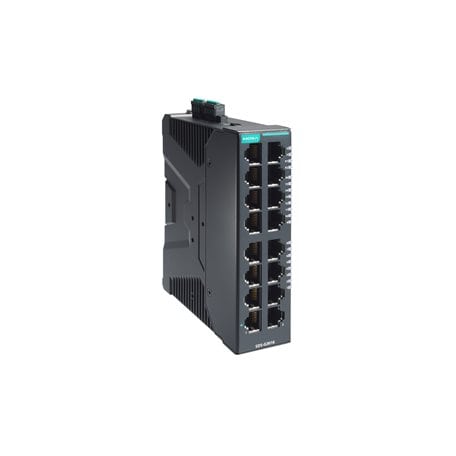

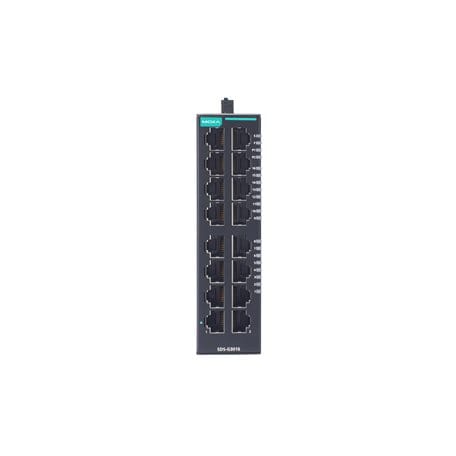

You can also find the SDS-G3016, SDS-G3016-2GSFP, and SDS-G3016-T models in the SDS-G3016 Series.

For buyers, especially in the Middle East (UAE (Dubai, Abu Dhabi), KSA (Al Khobar, Riyadh), Kuwait, Qatar, and Oman), our branches pave the way to inquire about or purchase industrial products online at a competitive price, ensuring a smooth process for obtaining the MOXA SDS-G3016-2GSFP-T Smart Ethernet Switch. Enjoy the ease of online shopping for all your industrial needs.

MOXA SDS-G3016-2GSFP-T Certifications

MOXA SDS-G3016-2GSFP-T Features

-40 to 75°C operating temperature
Multi-language web GUI: English, Traditional Chinese, Simplified Chinese, Japanese, German, and French
Supports RSTP/STP, and MRP for network redundancy to ensure high network availability
EtherNet/IP, PROFINET, and Modbus TCP industrial protocols supported for easy integration and monitoring in automation HMI/SCADA systems
Security features based on IEC 62443
Rotary DIP switch can perform profile-based settings without using a web browser

switch and hub : Interface
Number of ports	16 Ports
10/100Mb RJ45 (Megabit) Ports	14 Ports
10/100/1000Mb RJ45 (Gigabit) Ports	No
100Mb Fiber optic multi mode (Megabit) Ports	No
100Mb Fiber optic single mode (Megabit) Ports	No
1000Mb SFP Fiber optic (Gigabit) Ports	No
10/100Mb (Megabit) POE Ports	No
100Mb SFP Fiber optic (Megabit) Ports	No
10/100/1000Mb (Gigabit) POE Ports	No
Other ports	2 x 100/1000BaseSFP slots
switch and hub : Features and capabilities
Backup	Yes
switch and hub : LED Indicators
LED Per Port	Yes
switch and hub : Power Requirements
Power Consumption (Output Adapter)	15.49 W
Power Input Plugin ( Redundant )	Yes
Input Voltage	12-48 VDC, Redundant dual inputs
Operating Voltage	9.6 to 60 VDC
Input Current	1.29 A max. 12-48 VDC
switch and hub : General
Fan / Fanless	Fanless
MTBF	2,844,904 hrs
switch and hub : Switch specifications
Most forwarding speed	-
Network working layers	Layer 2
Switch type	Smart Ethernet switch
Port Aggregation	-
switch and hub : Physical Characteristics
Housing	Metal
Installation	DIN-rail mounting, Wall mounting (with optional kit)
Operation Humidity	5 to 95% (non-condensing)
Standards and Certifications	EMC, EMI, EMS, Safety, Shock, Freefall, Vibration
switch and hub : Standards and protocols
Protocols and work standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x , IEEE 802.1D-2004, IEEE 802.1w, IEEE 802.1Q, IEEE 802.1p
Protocols and management standards	EtherNet/IP, Modbus TCP, PROFINET IO Device, Back Pressure Flow Control, DHCP Client, Flow control, IPv4/IPv6, LLDP, Port Mirror, SNMP Inform, SNMPv1/v2c/v3, Syslog, RSTP, STP, MRP (Client), HTTPS/SSL, SNMPv3, Port Lock, NTP Server/Client, SNTP, 802.1Q VLAN
switch and hub : Package Checklist
Hardware installation guide	Yes
Power adapter	No
Power cable	No
