MOXA TN-4908-ETBN-4GPoE-4GTXBP-WV-CT-T Introduction

The ToughNet TN-4900 Series, designed for rolling stock Ethernet networks, is a set of high-performance M12 routers with 8 Gigabit ports and up to four bypass relay ports. These routers feature firewalls, ETBN, and routing functionality to facilitate the deployment of applications across networks. The TN-4900 Series routers use M12 and other circular connectors to ensure tight, robust connections that guarantee reliability against environmental disturbances, such as vibration and shock.

The TN-4900 Series supports a wide power input range of 24 to 110 VDC and can operate in temperatures of -40 to 70°C for extended periods of time. Furthermore, these routers are compliant with the mandatory requirements of EN 50155, making them suitable for a variety of industrial applications.

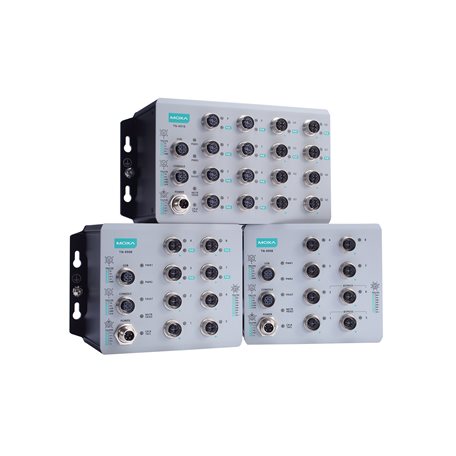

You can also find the models in the TN-4900 series.

Explore the wide variety of industrial automation products we have for sale at lower prices. Choose and buy MOXA TN-4908-ETBN-4GPoE-4GTXBP-WV-CT-T Industrial Secure Router the ideal solutions that meet your specific needs. Our branches in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman) are strategically located to provide efficient support for all your purchasing requirements.

MOXA TN-4908-ETBN-4GPoE-4GTXBP-WV-CT-T Certifications

MOXA TN-4908-ETBN-4GPoE-4GTXBP-WV-CT-T Features

4 x 100/ 1000BaseT(X) Ports, M12 Xcoded 8-pin Female Connector With Bypass Relay, total 50 W power budget
4 x 10/100/ 1000BaseT(X) PoE Ports, M12 X-coded 8-pin Female Connector
24 to 110 VDC power input
with ETBN
-40 to 70°C operating temperature
Supports regular and push-pull M12 connectors
Complies with all EN 50155 mandatory test items

Router : Interface
Ethernet Ports	4 x 100/1000BaseT(X) ports with M12 X-coded 8-pin female connector With Bypass relay, 4 x 10/100/1000BaseT(X) PoE ports with M12 X-coded 8-pin female connector
Serial Ports	No
Input/Output Channels	-
Router : LED Interface
LED Indicators	STATE, PWR1, PWR2, FAULT, 10/100/1000M, PoE
Router : General
Supported Protocols	Back Pressure Flow Control, SNMP Inform, LLDP, Syslog, HTTP, HTTPS, Flow control, SMTP, QoS/CoS/ToS, Port Mirror, SNMP Trap, SNMPv1/v2c/v3, IPv4, Telnet, DHCP Server, SFTP, SCP, TFTP, RARP, RSTP, Static Port Trunk, Turbo Ring v2, STP, VRRP, RADIUS, SSH, FTP, DNP, DPI, EtherCAT, EtherNet/IP, IPsec, L2TP, LonWorks, Modbus TCP, PPTP, PROFINET
MTBF	545,021 hrs
Router : Power Requirements
Input Voltage	24/36/48/72/96/110 VDC, Redundant dual inputs, No. of power inputs: 2
Input Current	3.6 A @ 24 V
Operating Voltage	16.8 to 137.5 VDC
Overload Current Protection	Yes
Reverse Polarity Protection	Yes
Power Connector	M12 K-coded 5-pin male connector
Router : Physical Characteristics
Housing	Metal
IP Rating	IP40
Installation	Wall mounting
Ambient Relative Humidity	5 to 95% (non-condensing)
Standards and Certifications	EMC, EMI, EMS, FCC, Railway, EN 45545-2, Safety, Shock, EN 50155, Vibration, ISTA 1A
