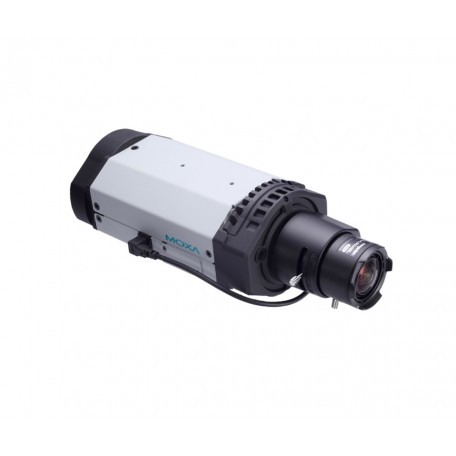

MOXA VPort 36-1MP-IVA-T Box IP Camera
End of Life

This product is unavailable for sale and has been discontinued. Please refer to the replacement series: IP Cameras


MOXA VPort 36-1MP-IVA-T Introduction

The VPort 36-1MP series is the world’s first rugged IP camera that can withstand environmental temperatures ranging from -40 to 75°C without a heater or cooling fan. It is an industrial-grade, H.264 box-type IP camera that combines HD resolution (1280 x 720), advanced IVA (Intelligent Video Analysis) technology, and de-mist technology to enhance surveillance system efficiency while delivering state-of-the-art video quality. Optional housing and PT scanner accessories are available for indoor and outdoor installation.
The VPort 36-1MP series is designed for indoor and outdoor applications that require operational reliability. It is a unique and competitive camera in the IP CCTV market, with features such as high EMI/surge protection, optional IP66 housing for rain/dust protection, and -40 to 75°C operation without a heater or cooling fan. This camera is available with PoE (Power over Ethernet, 802.3af) or with wired power input supporting 12/24 VDC or 24 VAC.

MOXA VPort 36-1MP-IVA-T Certifications



MOXA VPort 36-1MP-IVA-T Features

  • Industrial design
  • 1/2.7” progressive scan CMOS camera with HD resolution (max. 1280 x 720)
  • DNR/WDR technologies for superb video/image quality
  • Up to 3 independent video streams (2 H.264/1 MJPEG)
  • Compatible with CS/C mount lenses with built-in ICR support
  • EN 50121-4 and NEMA TS2 compliant
  • Supports DynaStream™ for optimized network efficiency
  • 1 x 10/100Mbps T(X) port
  • 1 x RS-485 serial port
  • SD storage for event and disconnection recording
  •  12/24 VDC or 24 VAC power input or Power-over-Ethernet
  • -40 to 75°C operating temperature (heater or cooling fan not required)


Place an order online for the MOXA VPort 36-1MP-IVA-T Box IP Camera and enjoy the convenience of delivery to your specified location at a reasonable price. Our dedicated team in the Middle East (UAE (Dubai, Abu Dhabi), KSA (Al Khobar, Riyadh), Kuwait, Qatar, and Oman) is ready to assist with any inquiries and ensure a smooth buying process.

IP Cameras : Camera
Sensor 1/2.7” HD progressive scan CMOS
Lens Designed for C/CS mount lens (lens not included)
Illumination Color: 0.2 lux at F1.2, B/W: 0.05 lux at F1.2
ICR Control (for day & night) Auto (light sensor control) or DI control
White Balance ATW/AWB (range: 3200 to 10000°K)
DNR Built-in DNR
WDR Levels 1-8
Flickerless Control Indoor/Outdoor mode
Auto Exposure Level ±5
Image Rotation Flip, Mirror, and 180° rotation
Image Setting Flip, Mirror, and 180° rotation
Black Level Control High/Medium/Low
AGC (auto gain control) 2X, 4X, 8X, 16X, 32X, 64X
Electronic Shutter 1/30 to 1/25000 sec
S/N Ratio 50 dB (Gamma, Aperture, AGC OFF; DNR ON)
IP Cameras : Video
Video Compression H.264 (ISO/IEC 14496-10) or MJPEG
Video Output Ethernet
Video Streams 3 video streams (2 x H.264 and 1 x MJPEG)
Video Viewing DynaStream™ supported for automatic adjustment of frame rate, 3 privacy mask areas provided, Adjustable image size and quality, Timestamp and text overlay, Maximum of 5 simultaneous unicast connections
IP Cameras : Network
Ethernet 1 x 10/100BaseT(X) Ethernet port, RJ45 connector
IP Cameras : GPIO
Digital Inputs 11, max. 8 mA High: +13 to +30 V; Low: -30 to +3 V
Relay Outputs 1, max. 24 VDC @ 1 A
IP Cameras : Power Requirements
Input 12/24 VDC, 24 VAC, or Power-over-Ethernet (IEEE 802.3af)
IP Cameras : Alarms
Intelligent Video Camera tamper, virtual fence, alert zone, missing object, unattended object
Video Motion Detection 3 independently configurable motion areas
Scheduling Daily repeat timing schedule
Imaging JPEG snapshots for pre/trigger/post alarm images
Custom Alarms HTTP event servers for setting customized alarm actions
Email/FTP Messaging Automatic transfer of stored images via email or FTP as event-triggered actions
Pre-alarm Buffer 24 MB video buffer for JPEG snapshot images
IP Cameras : Security
Password User level password protection
Filtering By IP address
Encryption HTTPS, SSH
Authentication 802.1X
IP Cameras : Standards and Certifications
EMI FCC Part 15, CISPR (EN 55022) Class A
Shock IEC 60068-2-27
Freefall IEC 60068-2-32
Vibration IEC 60068-2-6
EMS EN 61000-4-2 (ESD) Level 3, EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3, EN 61000-4-8
IP Cameras : General
MTBF 541,826 hours
Memory Size 512 MB of memory
IP Cameras : Physical Characteristics
Housing Metal, IP30 protection
Dimensions 78 x 65 x 150 mm
Installation Wall mounting, pole mounting, corner mounting
Operating Temperature -40 to 75°C (-40 to 167°F)
Ambient Relative Humidity 5 to 95% (non-condensing)
Safety UL 60950-1
Storage Temperature -40 to 85°C (-40 to 185°F)
IP Cameras : Minimum Viewing System Requirements
CPU Pentium 4, 2.4 GHz
Browser Internet Explorer 9.x or above
Multimedia DirectX 9.0c or above
