Durable Panel Computers for Challenging Outdoor and Hazardous Environments

24 Dec Durable Panel Computers for Challenging Outdoor and Hazardous Environments
admin 0 Comment(s) 126 View(s) INDUSTRIAL COMPUTING , INDUSTRIAL STANDARDS AND CERTIFICATIONS

Harsh and hazardous environments, whether indoor or outdoor, pose significant challenges such as extreme temperatures—ranging from intense heat to freezing cold—excessive dust, water exposure, and even the risk of explosive atmospheres. To ensure safe and effective control and monitoring of industrial applications in these conditions, the next-generation MPC-3000 Series panel PCs provide durable, adaptable, and rugged solutions tailored for oil and gas, marine, and outdoor operations.

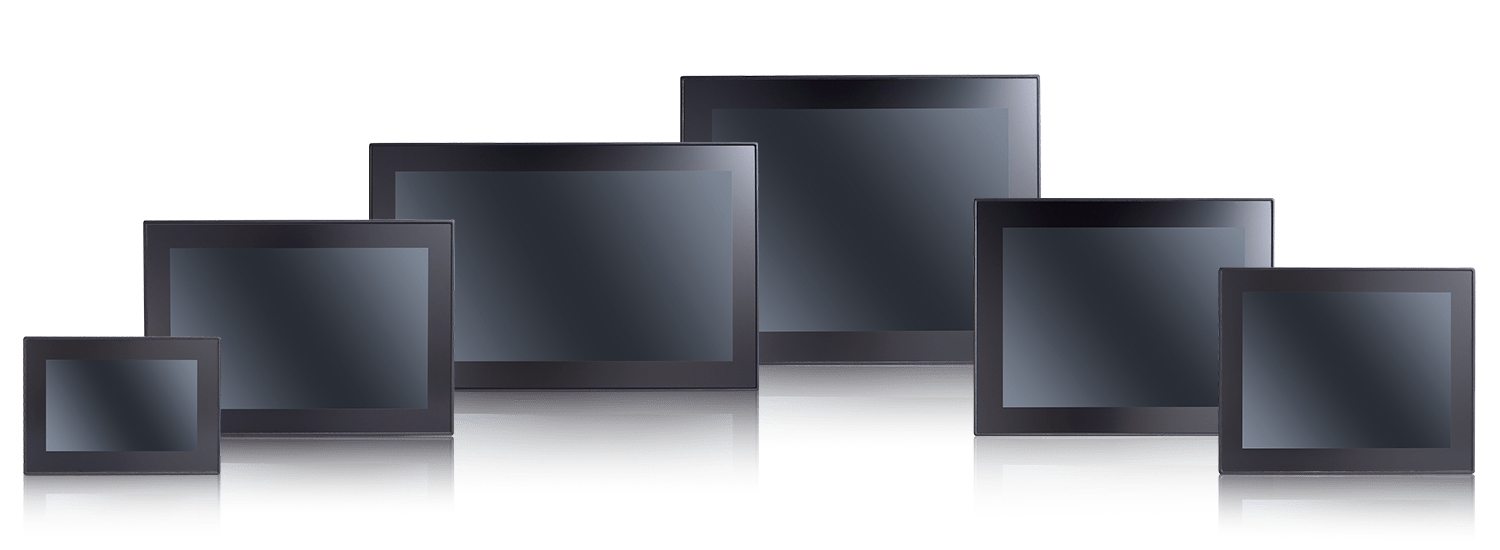

Equipped with Intel Atom® x6000E processors, the MPC-3000 Series features six distinct models with display sizes from 7 to 15.6 inches. These panel PCs are purpose-built to thrive in extreme environments, enhancing both reliability and productivity. They are certified for a broad range of industrial and marine standards, including CID2, IECEx Zone 2, ATEX Zone 2, DNV, IEC 60945, and IACS E10.

Why Moxa


Industrial-Grade Durability for Reliable Performance

Built for extreme conditions, the MPC-3000 panel PCs feature a fanless design and glove-friendly multi-touch screens encased in an IP66-rated metal housing. With an operating temperature range of -30 to 60°C, they are ideal for outdoor and hazardous environments.


Certified for Industrial Safety and Performance

The MPC-3000 Series meets rigorous standards, holding certifications such as CID2, ATEX, IECEx, and DNV, ensuring compliance and reliability across diverse industrial applications.


Simplified Maintenance with Modular Design

The modular construction, combined with minimized cabling, reduces downtime by making maintenance quick and efficient. Its cableless front and rear panels further enhance operational simplicity and reliability.

Key Features


Wide Operating Temperature

Reliable performance in -30 to 60°C environments

Sunlight Readable

1000-nit display for outdoor visibility

Advanced Touchscreen

Glove-friendly, multi-touch G+G structure

Fanless Design

Heat sink for effective thermal management

Supports various PLCs and SCADA systems

Supports various PLCs and SCADA systems

Modular Design

Easy-to-replace parts for efficient maintenance

Rugged Metal Housing

Designed for demanding industrial applications

Waterproof Protection

Waterproof Protection



Applications in Challenging Environments

  • Oil and Gas: The glove-friendly touchscreen, IP66 enclosure, and wide temperature tolerance make them suitable for monitoring and control in hazardous drilling rigs and explosive atmospheres.

  • Marine: DNV-certified for reliable operation in engine room alarm and monitoring systems aboard ships.

  • Outdoor Installations: Ideal for remote monitoring and data acquisition in solar power plants and EV charging stations, featuring sunlight-readable displays and robust performance in extreme temperatures.

Explore the rugged capabilities of the MPC-3000 Series and see how they excel in the most demanding applications.


Industrial Panel Computers

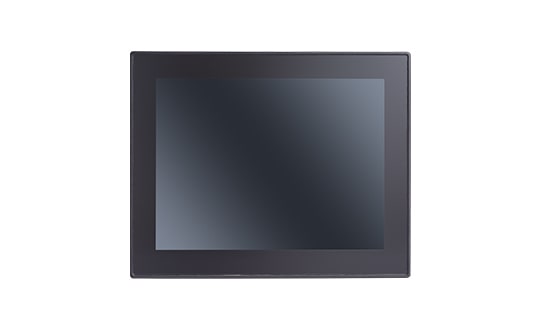

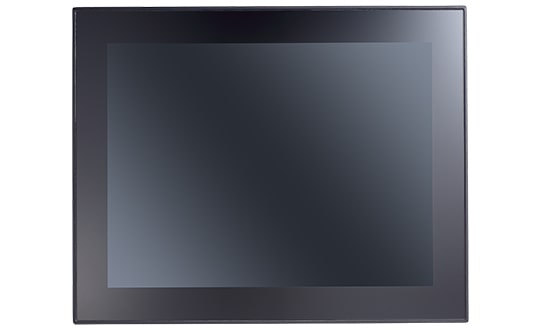

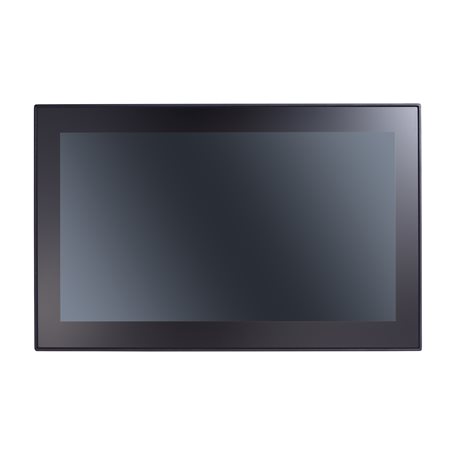

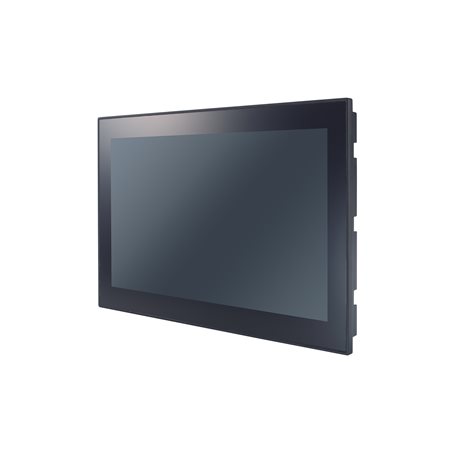

MPC-3000 Series
CPU
Ethernet Ports
Serial Ports
USB 3.0
Light Intensity (Brightness)
Panel Size
Pixels
Touch Type
Input Voltage
IP Rating
Operating Temperature
Standards and Certifications
E2 models: Intel Atom® x6211E Elkhart Lake (dual-core, 1.30 GHz)
E4 models: Intel Atom® x6425E Elkhart Lake (quad-core, 2.0 GHz)
2 x Auto-sensing 10/100/1000 Mbps ports (RJ45 connector)
2 x RS-232/422/485 ports (software-selectable, DB9 male connector)
2 x USB 3.0 hosts (type-A connector)
400 / 1000 nits

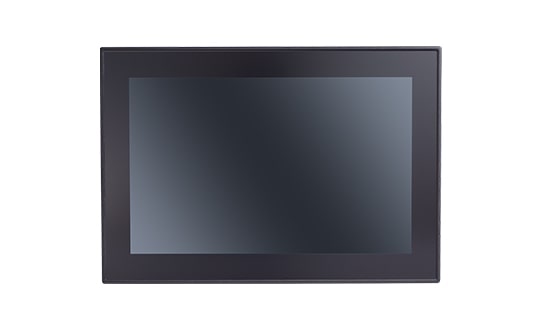

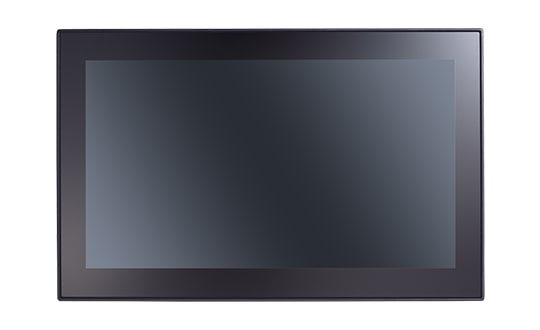

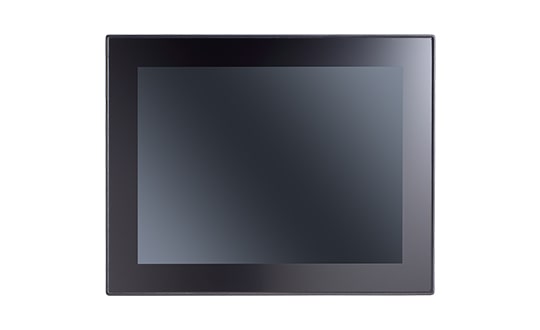

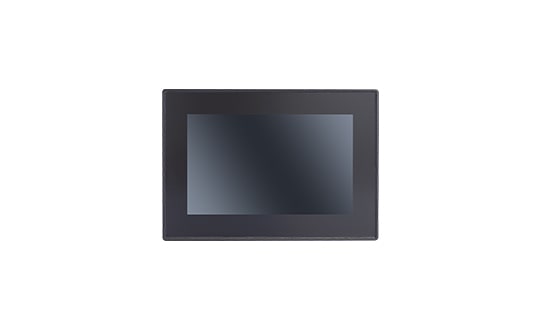

7 in (5:3) 10.4 in (4:3) 12.1 in (4:3) 12.1 in (16:10) 15 in (4:3) 15.6 in (16:9)
800 x 480 1024 x 768 1024 x 768 1280 x 800 1024 x 768 1920 x 1080
Projective capacitive (PCAP) touchscreen
12/24 VDC
IP66 (front), IP20 (rear)
-30 to 60°C (-22 to 140°F)
CID2, ATEX Zone 2, IECEx Zone 2, DNV-CG-0339, IEC 60945, IACS E10,
IEC 62368-1, UL 62368-1, IEC 60068-2-27, IEC 60068-2-64, IEC 60068-2-61

1 Certification processes underway.


*Easy World's Moxa's official distributor in the Middle East. For any further information please contact us via sales@eworldme.com.
