Moxa introduces a new generation of BXP, DRP, and RKP series industrial
computers to facilitate rapid system
development with reliable, adaptable, and cost-effective computing
solutions. The industrial computers are based on a pre-formulated
configure-to-order architecture to meet various system
development and integration requirements. Their wide-temperature design,
coupled with fanless operation, ensures stable performance even in harsh
environments.
Key Features
-
Compact Size
Easily fit in space-limited applications -
Reliable Serial Communications
Support higher baud rate to ensure better data connectivity -
Multiple OS Options
Supports multiple Windows and Linux OSes -
Fanless Design
Robust thermal design for efficient heat dissipation -
Wide Temperature Range
Designed for operation in the -30 to 60°C temperature range -
10-year Longevity Commitment
Sustainable supply chains to ensure long-term product support -
Modular Design
Shorter prototyping and customization process for faster time to market
Elevate Reliability With Industrial-grade Testing
Lifetime Testing
Lifetime Testing
Burn-in and NCC testing based on stricter criteria for verification of product lifetime
EMC Testing
EMC Testing
EN 55032/35 certification for uninterrupted performance
Shock and Vibration Resistance Testing
Shock and Vibration Resistance Testing
IEC 60028-2-27 and IEC 60028-2-64 certifications to guaranty resistance to shock and vibration during transport and operations
ISTA Package Testing
ISTA Package Testing
ISTA 1A testing to guarantee shock-absorbing and protection capabilities of the product package
Uncompromised Excellence With Our x86 Industrial Computers
Learn about the exciting new possibilities for your industrial applications. Join us to unbox our latest x86 industrial computers in just a few minutes.
Achieve Reliable Data Connectivity for Diverse Industrial Automation Applications
Factory Automation
Equipping RMS With M2M Gateways for Higher PCB Yields
To eliminate data silos across their manufacturing processes, a PCB manufacturer asked their solution provider to develop a gateway-based solution with a Recipe Management System (RMS) as a centralized data library to improve PCB production through real-time data collection and analysis.
Retail Automation
Transportation Automation
Automated Fare-collection Systems for Metro Transit Systems
Banking on their long-term partnership with Moxa, a metro rail company in Asia contacted Moxa for computing solutions to retrofit their automated fare collection (AFC) system for improving system flexibility and reliability at busy metro stations.
Engineered for Excellence in the Harshest Conditions
DNV, CID2, IECEx, and ATEX Certified
for Marine and Oil & Gas
Simple Steps to Your Best-fit Solution
* Images and drivers for Windows 10 IoT Enterprise LTSC 2021 (64-bit) and Windows 11 Professional 2022 (64-bit)
** Only support drivers for Debian 11 (kernel 5.10), Ubuntu 22.04 LTS (kernel 5.15), and RHEL 9 (kernel 5.14)
- BXP
- DRP
- RKP
- Base Model
- Base + 8 COM
- Base + 2 LAN / 3 COM
- Base + 8 LAN
- Intel Atom Dual-core
- Intel Atom Quad-core
- Intel Celeron
- Intel Core i5
- Intel Core i7
BXP-A100-E2-8L-T
*This is a 3D simulation of a model. Refer to the product page for an actual image of the models or contact our sales team.
BXP, DRP, and RKP Portfolio of Industrial Computers
| Form Factor |
|---|
| Series |
| CPU |
| Video Output |
| LAN Ports |
| Serial Ports |
| USB Ports |
| DI/Os |
| Memory Options |
| Storage Options |
| OS Options |
| Certification |

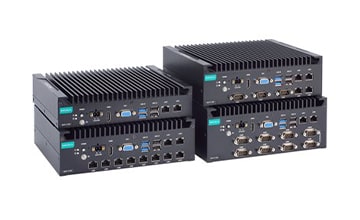

Box Computers
|

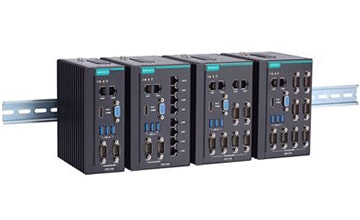

DIN-rail Computers
|

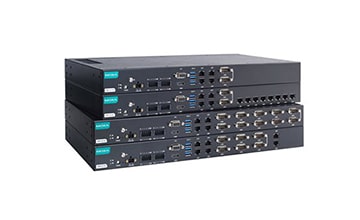

Rackmount Computers
|
||||
|---|---|---|---|---|---|---|
| BXP-C100 Series | BXP-A100 Series | BXP-A101 Series | DRP-C100 Series | DRP-A100 Series | RKP-C110 Series | RKP-A110 Series |
| 11th Gen Intel® Core™ - i7-1185G7E - i5-1145G7E Intel® Celeron® 6305E |
Intel Atom® Quad-core x6425E Dual-core x6211E |
11th Gen Intel® Core™ - i7-1185G7E - i5-1145G7E Intel® Celeron® 6305E |
Intel Atom® Quad-core x6425E Dual-core x6211E |
11th Gen Intel® Core™ - i7-1185G7E - i5-1145G7E Intel® Celeron® 6305E |
Intel Atom® Quad-core x6425E Dual-core x6211E |
|
| 1 HDMI, 1 VGA | 1 HDMI | 1 HDMI, 1 VGA | ||||
| Up to 10 | 2 | Up to 10 | Up to 12 | |||
| Up to 10 | 2 | Up to 8 | Up to 10 | |||
| 6 (2 USB 3.0, 4 USB 2.0) | 2 USB 3.0 | 3 USB 3.0 | 3 USB 3.0 | |||
| 4 DIs, 4 DOs | - | 8 DIs, 8 DOs | ||||
| 8 GB (pre-installed), 16 GB, up to 32 GB DDR4 | ||||||
| CFast: 64 GB, 128 GB, 256 GB, 512 GB, 1 TB | 2.5”SSD: 64 GB, 128 GB, 256 GB, 512 GB, 1 TB | |||||
| Windows 10 IoT Enterprise LTSC 2021 (64-bit) Windows 11 IoT Enterprise LTSC 2024 (64-bit) Windows 11 Professional 2022 (64-bit) |
||||||
| CE, FCC, UL, BSMI DNV, C1D2, IECEx, ATEX |
CE, FCC, UL, BSMI |
CE, FCC, UL, BSMI DNV, C1D2, IECEx, ATEX |
CE, FCC, UL, BSMI | |||
