What is IIN?

Intelligent Integrated Node (IIN), powered by the ioPAC 6500 Series, is a unified controller platform built for demanding, hazardous, and uncrewed remote industrial environments.

From Complex Architectures to Unified Integration

Industrial automation projects often involve multiple device brands, separate gateways, and disconnected configuration tools, making system management and maintenance unnecessarily complex.

The ioPAC 6500 simplifies this architecture. IINxpress integrated services bring I/O, communications, and control together on a single rugged platform, reducing infrastructure complexity and improving visibility across remote automation applications.

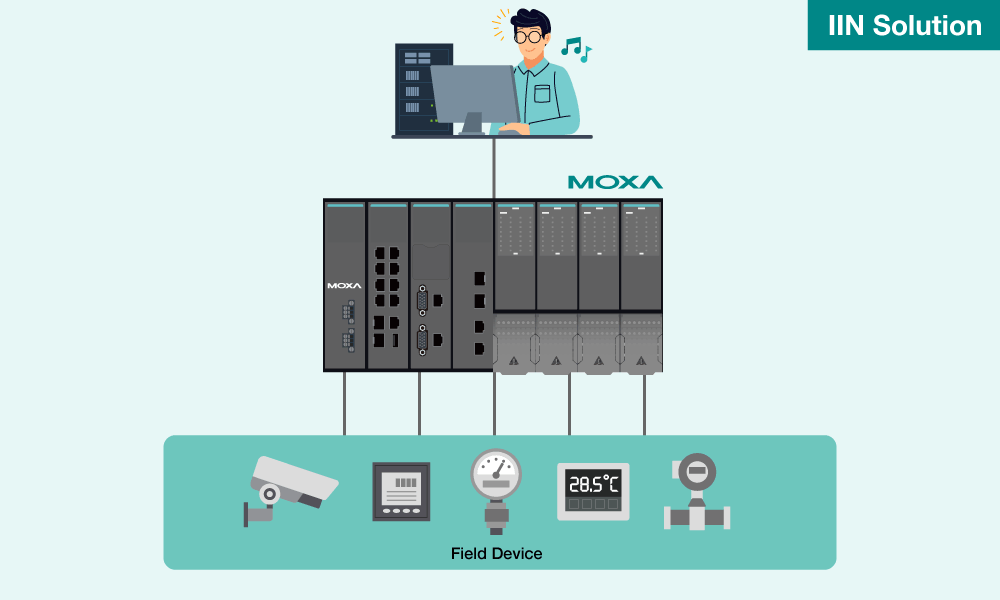

After

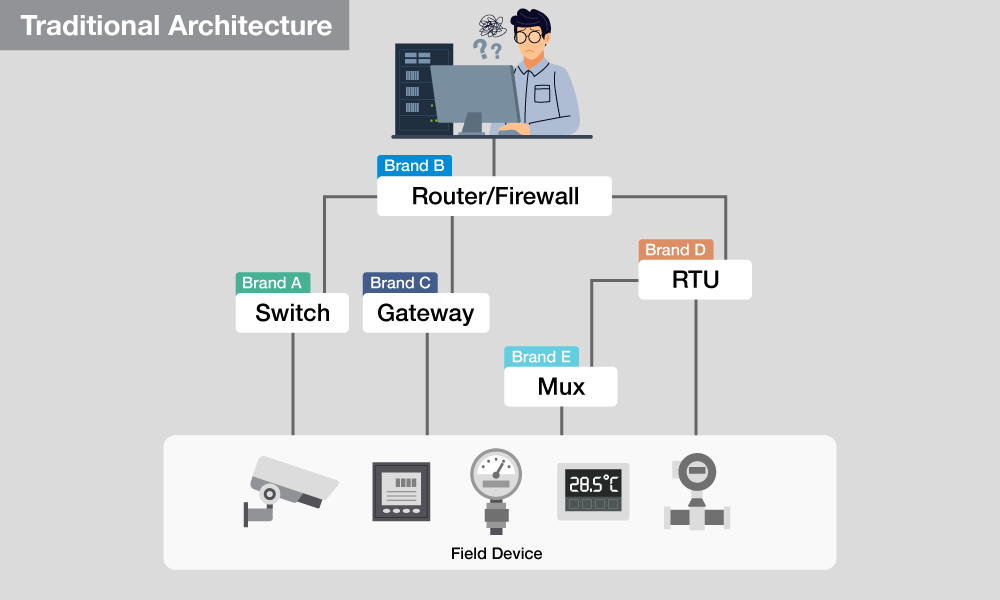

Before

Driving Industrial Performance With 6C Core Competencies

Explore the 6C capabilities below to discover how intelligent software and rugged hardware work together to solve real-world industrial challenges.

Control
Connectivity
Communication
Cybersecurity
Computing
Cloud

Hover over the 6C Competencies

Select a core competency on the left to see how integrated software features align with the corresponding hardware modules on the right.

Control Competency

  • CODESYS-based IEC 61131-3 programming engine
  • Supports all five standard PLC programming languages
  • Provides accurate real-time control, data processing, and logic execution

Versatile Connectivity

  • Supports diverse field interfaces, including DIO, AIO, HART, and Serial
  • Provides Modbus protocol services for industrial edge devices

Seamless Communication

  • Built-in Layer 2 managed switch with 8 x RJ45 and 2 x SFP ports
  • Supports Moxa Turbo Ring and Turbo Chain for reliable network redundancy
  • Provides Modbus, DNP3, and OPC UA protocol services for SCADA systems

Embedded Cybersecurity

  • Complies with the IEC 62443-4-1 secure product development life cycle
  • Includes Secure Boot, device access allowlisting, and role-based access control (RBAC)

Edge Computing Platform

  • High-performance ARM Cortex-A53 quad-core processor running at 1.6 GHz
  • Pre-installed with Moxa Industrial Linux 3 based on Debian 11

Native Cloud Capabilities

  • IT-friendly data environment enables seamless IT/OT network convergence
  • Provides native cloud connectivity via MQTT*

*MQTT support is expected by late 2027

Power
Switch
CPU
EXP
I/O
I/O

Core Foundations of Intelligent Edge Automation

Easy Deployment
Secure Edge Control
Reliable Hardware Design

Exceptional Flexibility and Scalability

Designed for maximum flexibility, the system can be configured to match your application requirements and scale with your automation needs.

CORE SOFTWARE PLATFORM

The Foundation of Unified Integration

IINxpress is an all-in-one, CODESYS-based engineering platform that streamlines system management, configuration, firmware updates, programming, protocol services, and diagnostics from a unified environment.

#include <modbus.h> #include <dnp3.h> int init_protocol_stack() { int port_status = open_serial_port("/dev/ttyM0", 115200); if (port_status < 0) return -1; /* Mapping Modbus Address Map Manually */ uint16_t mb_mapping_reg[100]; for(int i=0; i<100; i++) { mb_mapping_reg[i] = read_raw_field_pin(i); if(mb_mapping_reg[i] == ERROR_TIMEOUT) { log_error("Register Mapping Failed at offset %d", i); } } /* DNP3 Outstation Polling Configuration Logic */ dnp3_context_t dnp3_ctx; dnp3_init_outstation(&dnp3_ctx, 20000, "TCP_ONLY"); dnp3_bind_interface(&dnp3_ctx, mb_mapping_reg); return 0; }
Modbus 40001 Map
DNP3 Register Conf
OPC UA Node ID

Eliminate Complex Protocol Programming

Simplify protocol integration with built-in protocol services. IINxpress reduces manual coding so you can focus on developing your automation applications.



Simplified Mass Deployment

IINxpress Mass Utility lets you apply configuration files and update firmware across multiple devices simultaneously, making large-scale deployment and maintenance more efficient.

*Mass deployment feature expected by late 2026.

Mass Utility
✓Node 01
✓Node 02
✓Node 03
✓Node 04
✓Node 05

Defense-in-Depth Security

Protect critical assets against evolving cyber threats with the ioPAC 6500. Its hardened, multi-layered security architecture helps safeguard critical industrial applications in demanding environments.

Device
Network
*Cyber
  • Secure Boot
  • Allowlist/Trusted Access
  • Account Management, RBAC
  • Login Management
  • Interface Management
  • MAC Authentication Bypass
  • DoS Defense
  • Traffic Storm Control
  • Port Security
  • Protocols (SNMP v3, DNP3 SAv5)
  • OpenVPN
  • IEEE 802.1X
  • Network Address Translation (NAT)
  • Virtual Private Network (VPN)
  • Deep Packet Inspection (DPI)
  • Intrusion Prevention/Detection System (IPS/IDS)

*Firewall modules ready by late 2026

Fault-Tolerant System Design

The ioPAC 6500 provides modular, independent redundancy, allowing you to reinforce only the components your application requires. Hot-swappable I/O and modules enable maintenance without system downtime, helping ensure continuous operation and minimize service interruptions.

Power Redundancy
Dual separated system and field power
Communication Redundancy
Improve network connectivity and reliability
CPU Redundancy*
Minimize system downtime
Expansion Redundancy
Reinforce the interconnection between each unit
Hot-swappable I/Os
Replace the I/O modules without interrupting system operation
*CPU redundancy ready by late 2027

-40 to 75˚C Temperature Range

G3 Conformal Coating

CID2

ATEX Zone 2

IECEx

Built for Extreme Industrial Environments

Operate reliably in demanding industrial conditions. The Moxa ioPAC 6500 Series is designed to protect critical operations from hazardous elements, high humidity, corrosive environments, and extreme climates, helping maintain continuous uptime.

Why Choose Moxa

Unified Platform

IIN integrates control, networking, and protocol services into one unified industrial automation solution.

Simplify system setup and daily operation

Streamlined Maintenance

Reduce spare parts inventory costs with unified hardware and simplify servicing through tool-free, hot-swappable modules.

Lower maintenance and service costs

Hardened Defense

Protect network data flows with built-in, end-to-end device security from the field level to the edge.

Minimize the impact of cybersecurity threats

Product Portfolio

Moxa ioPAC 6500 Series

Fully modular programmable IIN controllers

Backplane Module:

  • Internal bus backbone enables seamless data exchange across all modules
  • Slot labels identify compatible module types
  • Supports DIN rail mounting
Learn More

PWR Module:

  • Provides power for both system and field I/O circuits
  • Supports a 24 VDC power input
Learn More

COM Module:

  • Optional Layer 2 managed switch with firewall support coming by the end of 2026
  • Connects the system to SCADA, subsystems, and enterprise networks
Learn More

CPU Module:

  • Runs the CODESYS runtime for IEC 61131-3 programming, including LD, FBD, ST, and more
  • Configured and programmed through the IINxpress IDE
Learn More

EXP Module:

  • Expands I/O capacity to support additional field points
  • Provides copper or SFP fiber connectivity for remote deployment from the control unit
Learn More

I/O Module:

  • Reads data from sensors and meters; controls motors, valves, and actuators
  • Available types: DI, DO, AI, AO, HART AI, and Serial
  • Relay and channel-to-channel isolated AO support coming by the end of 2026

Terminal Block Module:

  • Provides the physical wiring termination point for I/O modules
  • Each I/O module type requires a compatible Terminal Block Module (TBM)
Learn More
