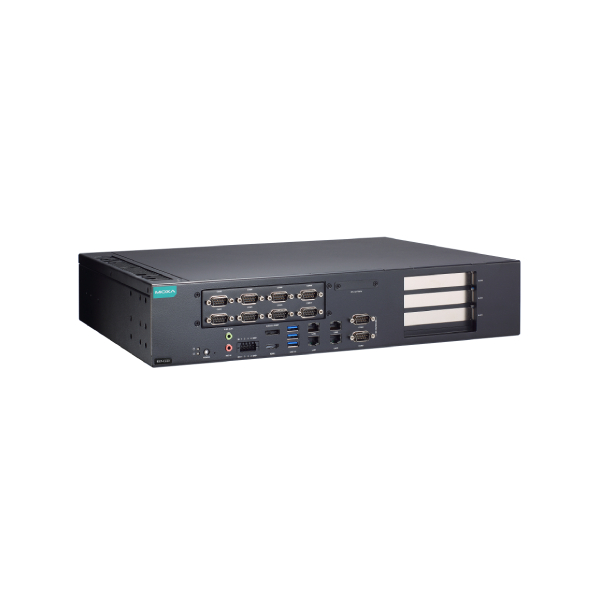

MOXA RKP-C220-C5-8C-T Introduction
The Moxa RKP-C220-C5-8C-T Industrial Computer is designed to serve as a reliable computing backbone for industrial edge environments where performance and endurance are equally important. It supports a wide range of applications, from automation and transportation to energy monitoring systems. With part number RKP-C220-C5-8C-T, the system integrates an Intel® Core™ i5-13500TE processor that provides the computing headroom required for advanced industrial applications.
The inclusion of 8 GB DDR4 system memory ensures responsive multitasking, while versatile storage support, two 2.5” SSD bays, and multiple M.2 interfaces allow customers to build optimized storage architectures.
Industrial connectivity is a key design focus. Four LAN ports enable robust Ethernet communication across devices and networks, while two serial ports ensure compatibility with existing industrial equipment. Three USB 3.0 ports support high-speed peripheral connections for configuration and maintenance. Designed for harsh conditions, the system operates reliably within a temperature range of -30 to 60°C. Positioned within the x86 Computers category, this model offers a dependable, scalable, and performance-driven platform for long-term industrial deployments.
MOXA RKP-C220-C5-8C-T Certifications

MOXA RKP-C220-C5-8C-T Features
- Intel® Core™ i5-13500TE
- 8 GB Memory
- Storage Slots: 2 x 2.5” SSD, 1 x M.2 M Key 2280, 2 X M.2 M Key 2242
- LAN/Serial: 4/10
- 3 x USB 3.0
- Power Input: 100 to 240 VAC
- -30 to 60°C operating temperature range
You can purchase the MOXA RKP-C220-C5-8C-T Industrial Computer for industrial Automation at a competitive price and simplify your buying process by placing an order through the website or inquiring at our Middle East branches (UAE (Dubai, Abu Dhabi), KSA (Al Khobar, Riyadh), Kuwait, Qatar, and Oman). Our dedicated team is always ready to assist you.
| Industrial Computer : Computer | |
| CPU | Intel® Core™ i5-13500TE |
| Supported OS | Windows 10 IoT Enterprise LTSC 2021 64-bit, Windows 11 IoT Enterprise LTSC 2024 64–bit, Windows 11 Professional 64-bit, Windows Server 2022, Debian 12 (kernel 6.10), Ubuntu 22.04 LTS/ HWE (kernel 5.15), RHEL 9.0 (kernel 5.14) |
| OS (pre-installed) | - |
| System Memory | 8 GB DDR4 |
| Graphics Controller | Intel® UHD Graphics 770 |
| Storage Slot | 2.5-inch SSD slot x 2 (SATA III interface, RAID 0/1 support), M.2 M Key 2280 socket x 1 (PCIe interface, NVMe support), M.2 M Key 2242 socket x 2 (PCIe interface, NVMe support, RAID 0/1 support) |
| Industrial Computer : Interface | |
| LAN | 2 x Auto-sensing 10/100/1000 Mbps ports (RJ45 connector), 2 x Auto-sensing 10/100/1000/2500 Mbps ports (RJ45 connector) |
| Magnetic Isolation Protection | 1.5 kV (built-in) |
| Serial Ports | RS-232/RS-422/RS-485-2W/RS-485-4W ports x 10, software selectable (DB9 male) |
| Digital Input/Output Channels | DIs x 4, DOs x 4 |
| Expansion Slot | PCIe x16 (Gen 4) slot x 1, PCIe x8 (4-lane, Gen 4) slot x 1, PCIe x1 (Gen 4) slot x 1 |
| USB | External: USB 3.0 hosts x 3, type-A connector, Internal: USB 3.0 hosts x 1, type-A connector |
| Industrial Computer : Serial Communication Parameters | |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | None, Even, Odd, Space, Mark |
| Flow Control | RTS/CTS, XON/XOFF |
| Baudrate | 50 bps to 115.2 kbps |
| Industrial Computer : Serial Signals | |
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-4w | Data+, Data-, GND |
| RS-485-2w | Tx+, Tx-, Rx+, Rx-, GND |
| Industrial Computer : LED Indicators | |
| System | - |
| LAN | 4 ports |
| Serial | 10 ports |
| Industrial Computer : Power Requirements | |
| Input Voltage | 100 to 240 VAC |
| Input Current | 200 mA per channel |
| Power Consumption | 90 W |
| Industrial Computer : General | |
| Alert Tools | - |
| Automatic Reboot Trigger | Built-in WDT |
| MTBF | 993,182 hrs |
| Industrial Computer : Physical Characteristics | |
| Dimensions | 440 x 360 x 88.1 mm (17.32 x 14.17 x 3.47 in) |
| Housing | Metal |
| Operating temperature | -30 to 60°C (-22 to 140°F) |
| Storage Temperature | -40 to 70°C (-40 to 158°F) |
| Relative humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | EMC, EMI, EMS, Safety, Shock, Vibration, RoHS, CRoHS, WEEE |
| Weight | 9,196 g (20.27 Ib) |
| Mounting | Rack mounting |
