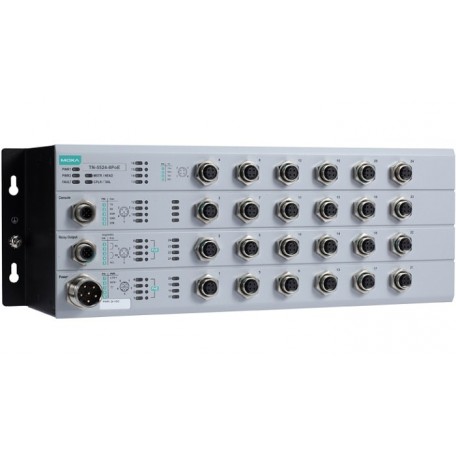

MOXA TN-5524-8PoE-P24-CT-T Managed Ethernet Switch
End of Life
MOXA TN-5524-8PoE-P24-CT-T Managed Ethernet Switch
This product doesn't qualify for free shipping
For further information about our shipping policy please click here.
  • Stock: Out Of Stock
  • Model: TN-5524-8PoE-P24-CT-T
MOXA MOXA
Product Views: 149
AED 0
Add to Cart
BUY NOW ENQUIRE NOW
Add to Wish List Compare this Product

This product is unavailable for sale and has been discontinued. Please refer to the replacement series:  TN-4500A Series


MOXA TN-5524-8PoE-P24-CT-T Introduction

The ToughNet TN-5500 series M12 PoE-managed Ethernet switches are designed for industrial applications, such as rolling stock, vehicles, and railways. The TN series switches use M12 and other circular connectors to ensure tight, robust connections and guarantee reliable operation against environmental disturbances, such as vibration and shock. The TN-5524-8PoE series Ethernet switches provide 24 Fast Ethernet M12 ports with 8 IEEE 802.3af compliant PoE (Power-over-Ethernet) ports. The switches are classified as power source equipment (PSE) and provide up to 15.4 watts of power per port and can be used to power IEEE 802.3af compliant powered devices (PDs) (such as surveillance cameras, wireless access points, and IP phones). Wide temperature models with an extended operating temperature range of -40 to 75°C are available. The TN-5500-PoE series Ethernet switches are compliant with the essential sections of EN 50155, covering operating temperature, power input voltage, surge, ESD, and vibration, making the switches suitable for a variety of industrial applications.

MOXA TN-5524-8PoE-P24-CT-T Features

  • 8 M12 100 Mbps PoE ports and 16 M12 100 Mbps ports
  • Metal body
  • An additional coating on the board to prevent the penetration of moisture and fluids
  • Suitable for work in a wide range of temperatures
  • suitable for rolling stock railway applications


Discover top-notch industrial solutions, and buy MOXA TN-5524-8PoE-P24-CT-T Managed Ethernet Switch with confidence online through the website at a reasonable price, or connect with our sales experts by inquiring in the Middle East (UAE (Dubai, Abu Dhabi), KSA (Al Khobar, Riyadh), Kuwait, Qatar, and Oman). Our commitment to quality and customer satisfaction remains unparalleled.

switch and hub : Interface
Number of ports 24 Ports
10/100Mb RJ45 (Megabit) Ports No
10/100/1000Mb RJ45 (Gigabit) Ports No
100Mb Fiber optic multi mode (Megabit) Ports No
100Mb Fiber optic single mode (Megabit) Ports No
1000Mb SFP Fiber optic (Gigabit) Ports No
10/100Mb (Megabit) POE Ports No
100Mb SFP Fiber optic (Megabit) Ports No
10/100/1000Mb (Gigabit) POE Ports No
M12 port Yes : 8 PoE 10 / 100Mbps ports and 16 10 / 100Mbps ports
Serial port No
USB No
switch and hub : Features and capabilities
Backup Yes
switch and hub : LED Indicators
LED Per Port Yes
Power Yes
switch and hub : Power Requirements
Maximum power consumption 15.4W for each PoE port
Power Consumption (Output Adapter) 16.8V DC to 30V DC
Power Input Plugin ( Redundant ) Yes
switch and hub : General
Fan / Fanless -
MTBF 663,533 hour
switch and hub : Switch specifications
Most forwarding speed -
Network working layers -
Switch type Managed
Port Aggregation IEEE 802.3ad, Link Aggregation Control Protocol
switch and hub : Physical Characteristics
Dimensions 390x132x122.3mm
Housing Metal
Installation Panel-mounting
Operating Temperature -40 to 75 ° C
Operation Humidity -
Standards and Certifications Safety: UL/cUL 508; EMI:FCC Part 15 Subpart B Class A, EN 55022 Class A; EMS:IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8; Rail Traffic:(for panel-mounting installations), EN 50155 (essential compliance*), EN 50121-4, EN 45545-2; Shock: EN 50155, IEC 61373; Freefall: IEC 60068-2-32; Vibration: EN 50155, IEC 61373; MTBF Standard: Telcordia SR332; Physical Charasteristics: IP40
Storage Humidity 5% to %95 non-condensing
Storage Temperature -40 to 85 ° C
Weight 3.506Kg
switch and hub : Standards and protocols
Protocols and work standards IEEE 802.3af for Power-over-Ethernet, IEEE 802.3 for 10BaseT,IEEE 802.3u for 100BaseT(X), IEEE 802.3x for Flow Control, IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1w for Rapid STP, IEEE 802.1s for Multiple Spanning Tree Protocol, IEEE 802.1Q for VLAN Tagging, IEEE 802.1p for Class of Service, IEEE 802.1X for Authentication, IEEE 802.3ad for Port Trunk with LACP
Protocols and management standards IPv4/IPv6, SNMP v1/v2c/v3, Telnet, LLDP, Port Mirror, Syslog, RMON, BootP, DHCP Server/Client, DHCP Option 66/67/82, TFTP, SMTP, RARP, HTTP, HTTPS, SNMP inform, Flow Control, Back pressure flow control; Filter:802.1Q VLAN, Port-Based VLAN, GVRP, IGMPv1/v2, GMRP, Static Multicast; Redundancy Protocols: STP/RSTP, MSTP, Turbo Ring v1/v2, Turbo Chain, Link Aggregation; Security: RADIUS, TACACS+, SSL, SSH, Port Lock, Broadcast Storm Protection, Rate Limit; Time Management: SNTP, NTP Server/Client, IEEE 1588v2 PTP (software-based)
switch and hub : Package Checklist
Hardware installation guide Yes
Power adapter No
Power cable No
