In today’s fast-paced industries, real-time data and smart connectivity are now an essential commodity rather than an option. Moxa's remote I/O solutions are an example of the shift in the industrial landscape as they provide proactive intelligence, industrial-strength reliability, and out-of-the-box deployment. Moxa has designed its remote I/O solutions to help industry accelerate insights derived from field data while ensuring a stable connection with real-time access to that data. With Moxa, organizations will transition their operations from reactive to predictive in real time.
See It In Action: Introducing Your Trusted Field Partner
In a brief video, you'll see how Moxa's remote I/Os operate in the field with you, providing you with integrated field monitoring and better decision-making capabilities in real time, wherever you need them, whenever you need them.
Why Moxa
Proactive Performance
Moxa’s remote I/O devices are designed with event-driven push communication and Click&Go Plus Logic to move beyond traditional polling-based systems. This intelligent design eases the load on the host system and improves response times, contributing to the integration of IT and OT systems.
In a push-based communication model, remote I/Os will send data only upon change in their state—greatly reducing network traffic. Unlike polling, which constantly polls devices for change (which obviously uses up a lot of bandwidth), push communication really allows the host to use bandwidth and provides it time to do real-time analysis and high-level applications. Models like the ioLogik E1200 Series, ioLogik 2500 Series, and MX-AOPC UA Suite support Moxa’s unique push technology.
Supported Models:
ioLogik E1200 Series, ioLogik 2500 Series, MX-AOPC UA Suite
Click&Go Plus Logic adds intelligence at the edge so that users can set up smart logic rules right on the device with an easy-to-use graphical interface. If-then-else logic allows you to respond to field events in real-time, rather than awaiting host instructions. The outcome is faster decision-making, lower latency, and greater overall system resilience, evident in various models, including the ioLogik 2500 Series.
Supported Models: ioLogik 2500 Series
Easy to Use
Moxa designs simplify installation by providing front-access wiring, daisy-chained Ethernet, and adaptable Modbus configurations to reduce effort and complexity in integration.

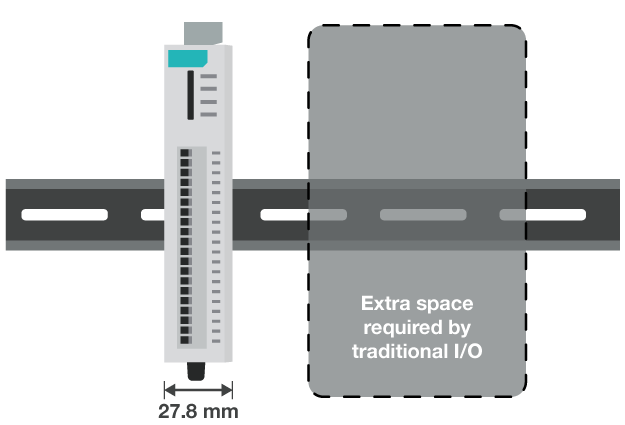

Moxa Remote I/Os take the hassle out of setup. The front-access wiring design provides direct access to screw terminals for quicker installation and a more organized use of space compared to rear wiring systems. All of this, plus more than 50% space savings on your DIN rail, gives you the option to save space for a large layout in compact or space-constrained control panels. You can witness this in certain models, such as the ioLogik E1200 Series, ioLogik R1200 Series, ioLogik 2500 Series, and ioThinx 4510 Series.
Supported Models:
ioLogik E1200 Series, ioLogik R1200 Series, ioLogik 2500 Series, ioThinx 4510 Series

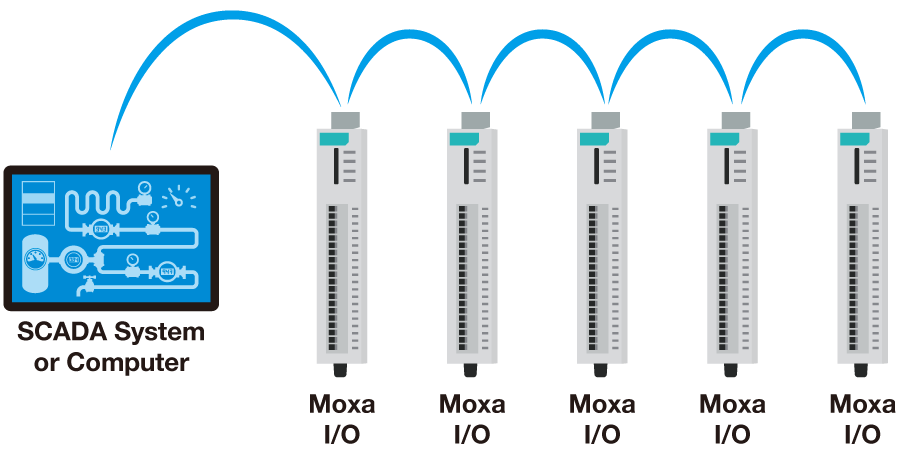

With dual LAN ports built in, some models, including the ioLogik E1200 Series and ioThinx 4510 Series, enable devices to be connected in a daisy-chained fashion without external switches. This simplifies your network design, reduces wiring costs, and makes deployment or expansion easier.
Supported Models: ioLogik E1200 Series, ioThinx 4510 Series

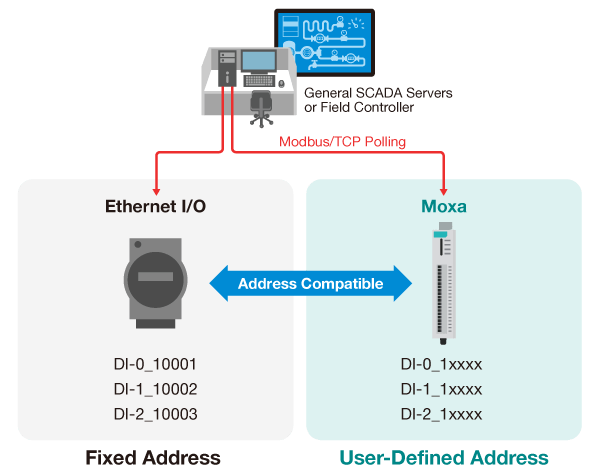

Moxa remote I/O allows you to modify Modbus addresses for use in current configurations, so you can easily integrate with existing systems. This degree of user-customization intends to reduce rework, enhance speed for facility deployment, and enable the hassle-free and efficient integration of existing equipment. Some of the models equipped with this feature are the ioLogik E1200 Series, ioLogik 2500 Series, and ioThinx 4510 Series.
Supported Models: ioLogik E1200 Series, ioLogik 2500 Series, ioThinx 4510 Series
Impeccable Reliability
Moxa remote I/O devices are built for industrial robustness. Moxa remote I/O devices have a wide temperature operating range, meaning they are designed for extreme conditions, with tolerances from extreme heating to freezing. And for environments that have massive amounts of noise, they have enhanced RS-485 stability on select models like ioLogik R1200 that increases noise immunity by 137% for secure communications.
Where Remote I/Os Make an Impact
Moxa remote I/Os are providing robust, compact control of lighting, roadside, and field systems across all forms of smart transportation, from tunnels to terminals, with products designed to operate in harsh outdoor environments.
Data Center
Moxa remote I/Os are great for thermal monitoring, legacy equipment integration, and energy management, as they support Modbus and SNMP protocols to connect with IT systems even in limited space, easily.
Manufacturing
In terms of real-time process monitoring and machine diagnostics, Moxa remote I/Os provide flexible I/O combinations, quick implementation, and easy connection with SCADA or MES systems to make digitalization possible.
Choose the Right Remote I/O for Your Needs
Ethernet remote I/O
RS-485 remote I/O
Smart remote I/O
Modular remote I/O

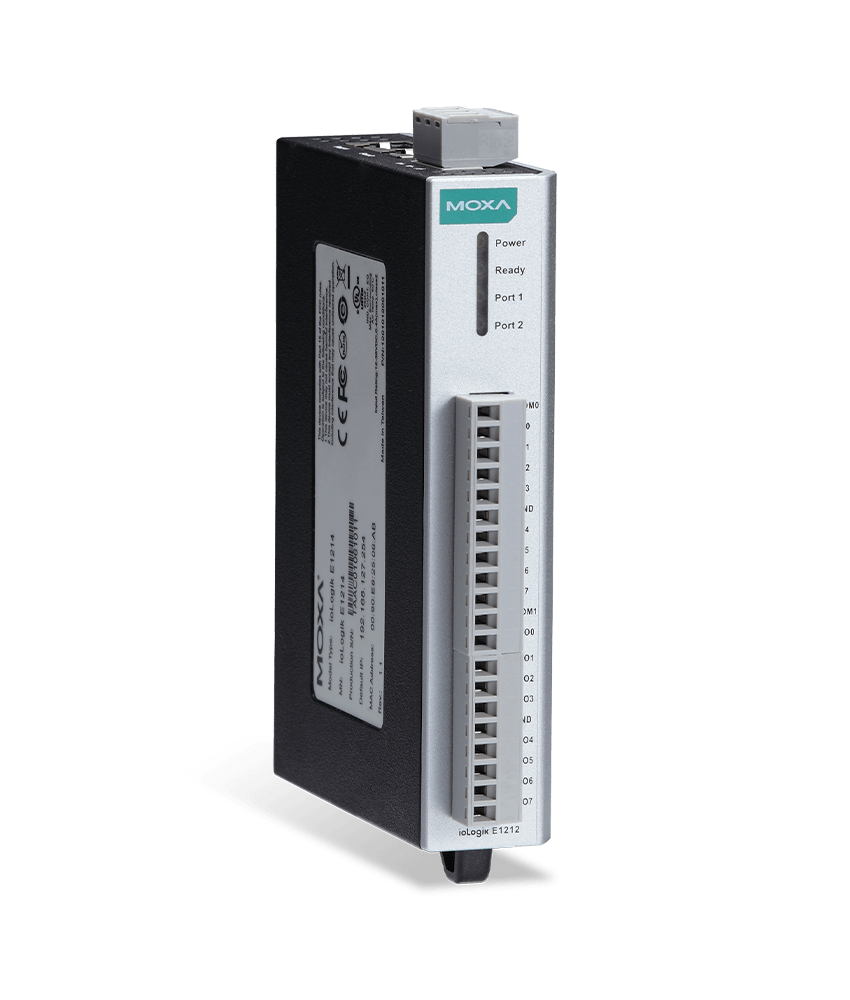

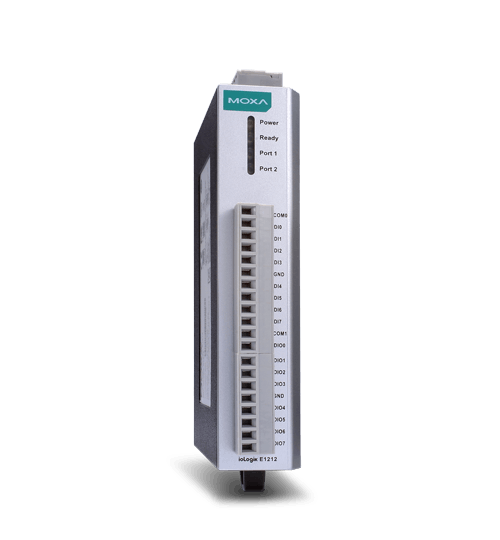

ioLogik E1200 Series
Effortless installation
Compact front-wiring design streamlines setupSmart networking
Built-in 2-port Ethernet switch for daisy-chain connectivitySeamless IT integration
Supports Modbus TCP, RESTful API, and SNMPProactive data reporting
Real-time active communication via MX-AOPC UA Suites

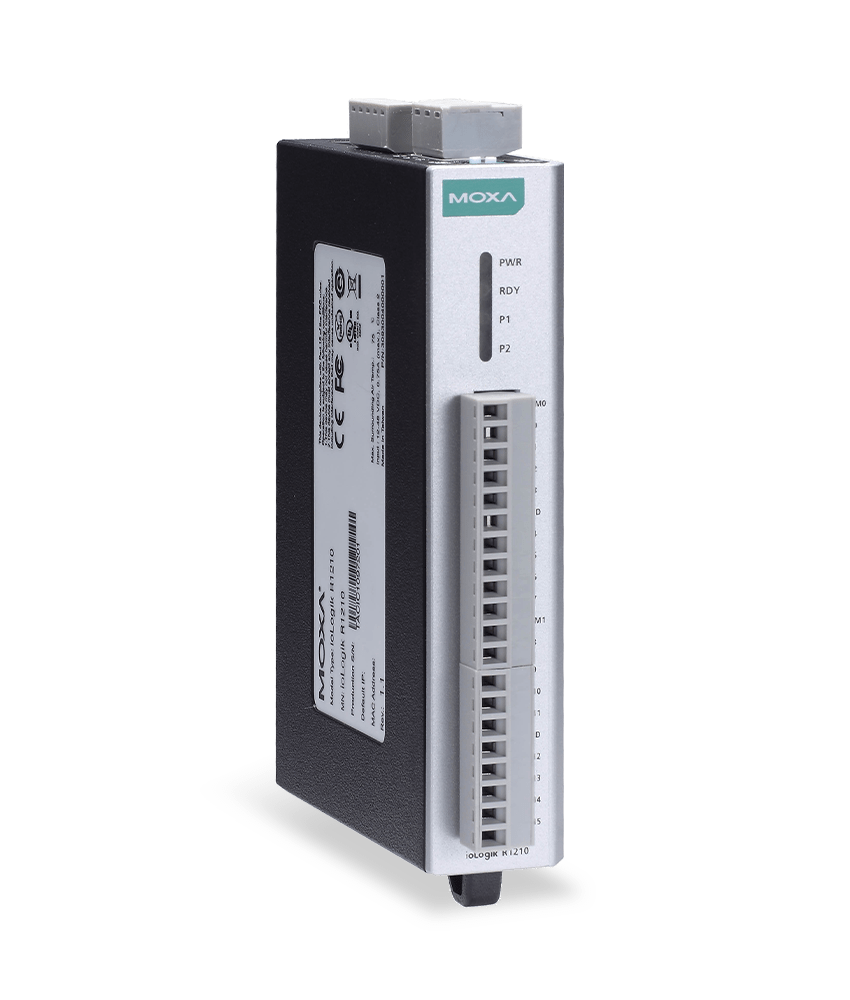

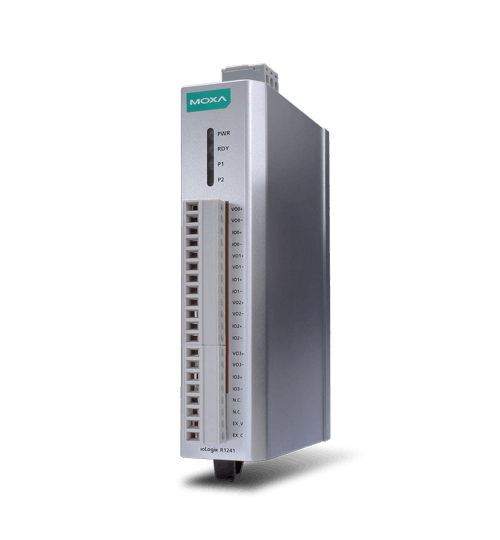

ioLogik R1200 Series
Fast and easy deployment
Compact front-wiring design for simplified installationSuperior stability
137% wider common mode voltage enhances RS-485 reliabilityReliable connectivity
Dual RS-485 or repeater mode for flexible wiring and data flow continuityHassle-free maintenance
Configure communication parameters and upgrade firmware via USB or RS-485

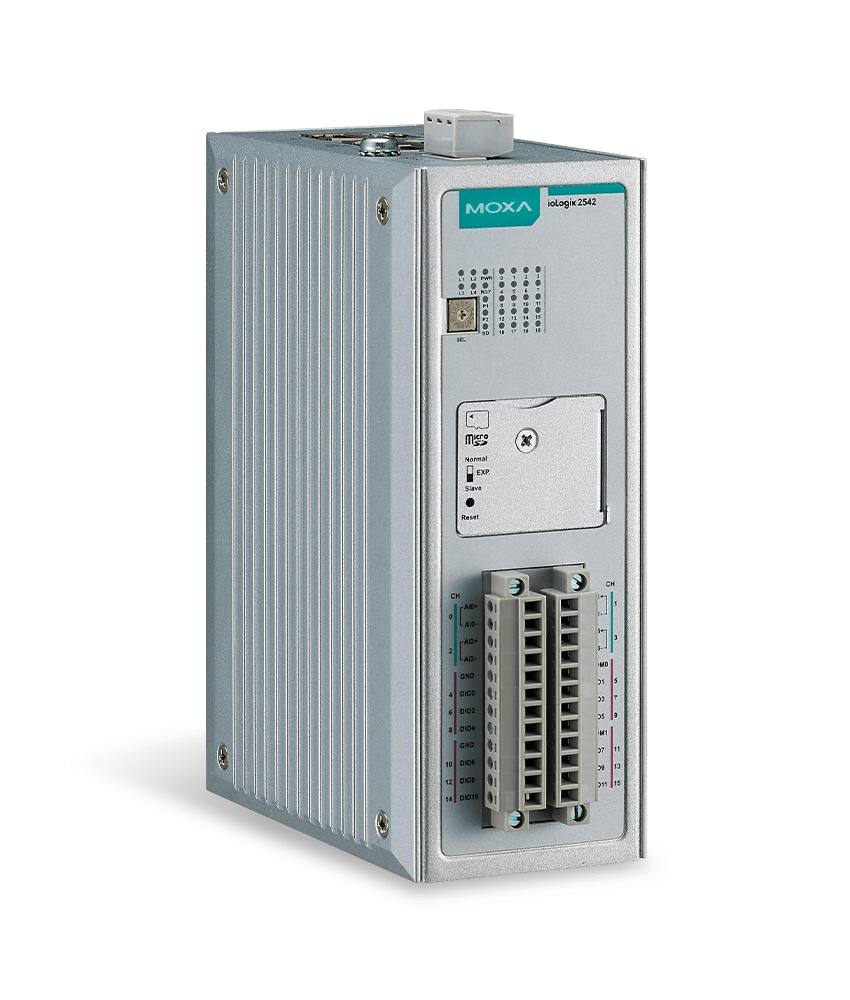

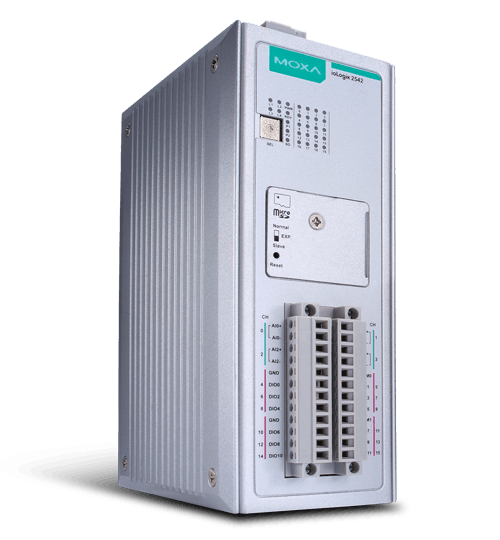

ioLogik 2500 Series
Edge Intelligence
Built-in Click&Go Plus logic enables local decision makingHighly scalable
Expandable with up to 8 additional ioLogik E1200 unitsFlexible connectivity
4-port Ethernet switch and dual serial ports for seamless integrationReliable data continuity
Auto lost data recovery via MX-AOPC UA Suites

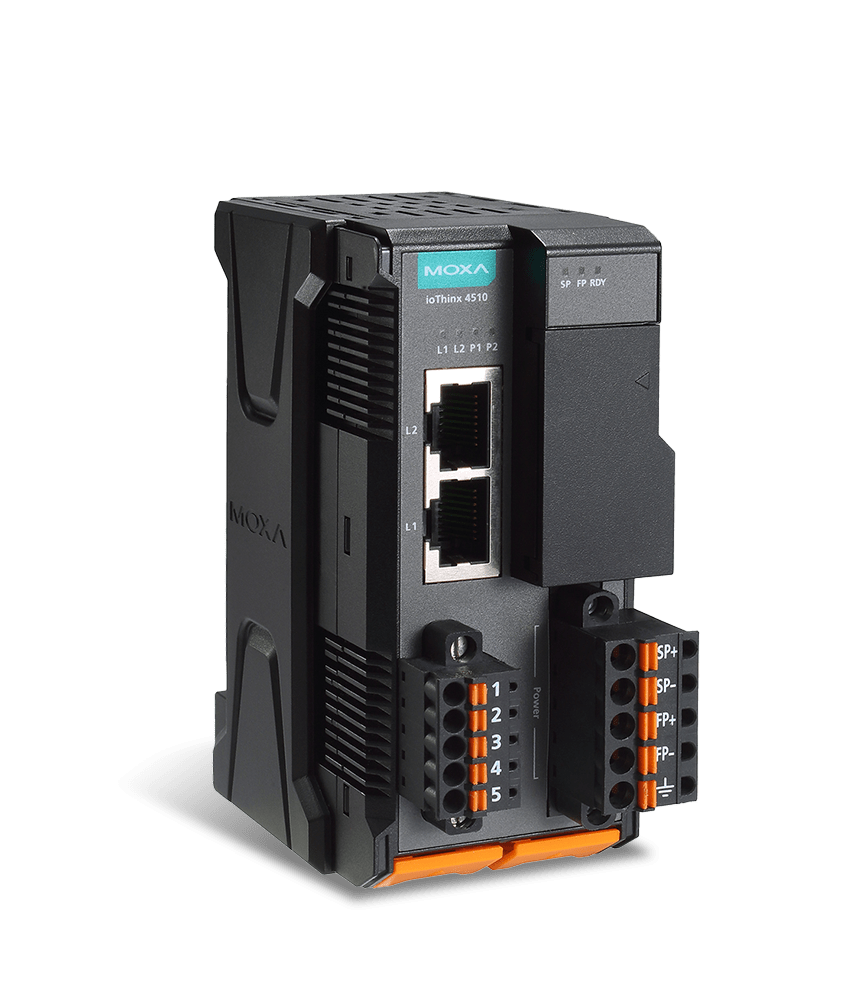

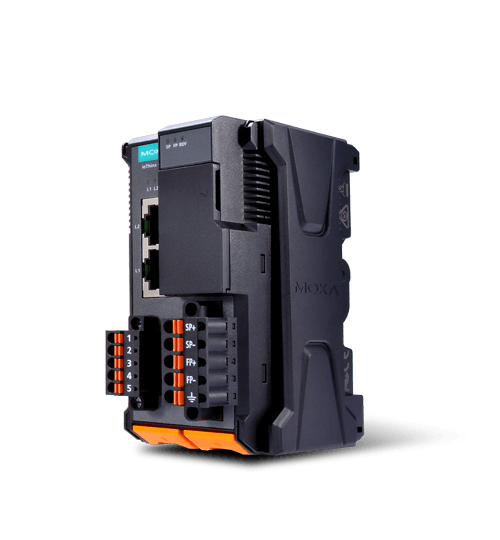

ioThinx 4510 Series
Quick installation
Tool-free setup and auto reconfiguration reduce downtimeFlexible expansion
Supports up to 32 modules for scalable applicationsMultiple connectivity options
2-port Ethernet switch and 3-in-1 serial port for various industrial setupsIT-ready design
Supports Modbus TCP, RESTful API, MQTT, and SNMPv3 for modern IIoT integration
Where Remote I/Os Make a Difference
Intelligent Transportation

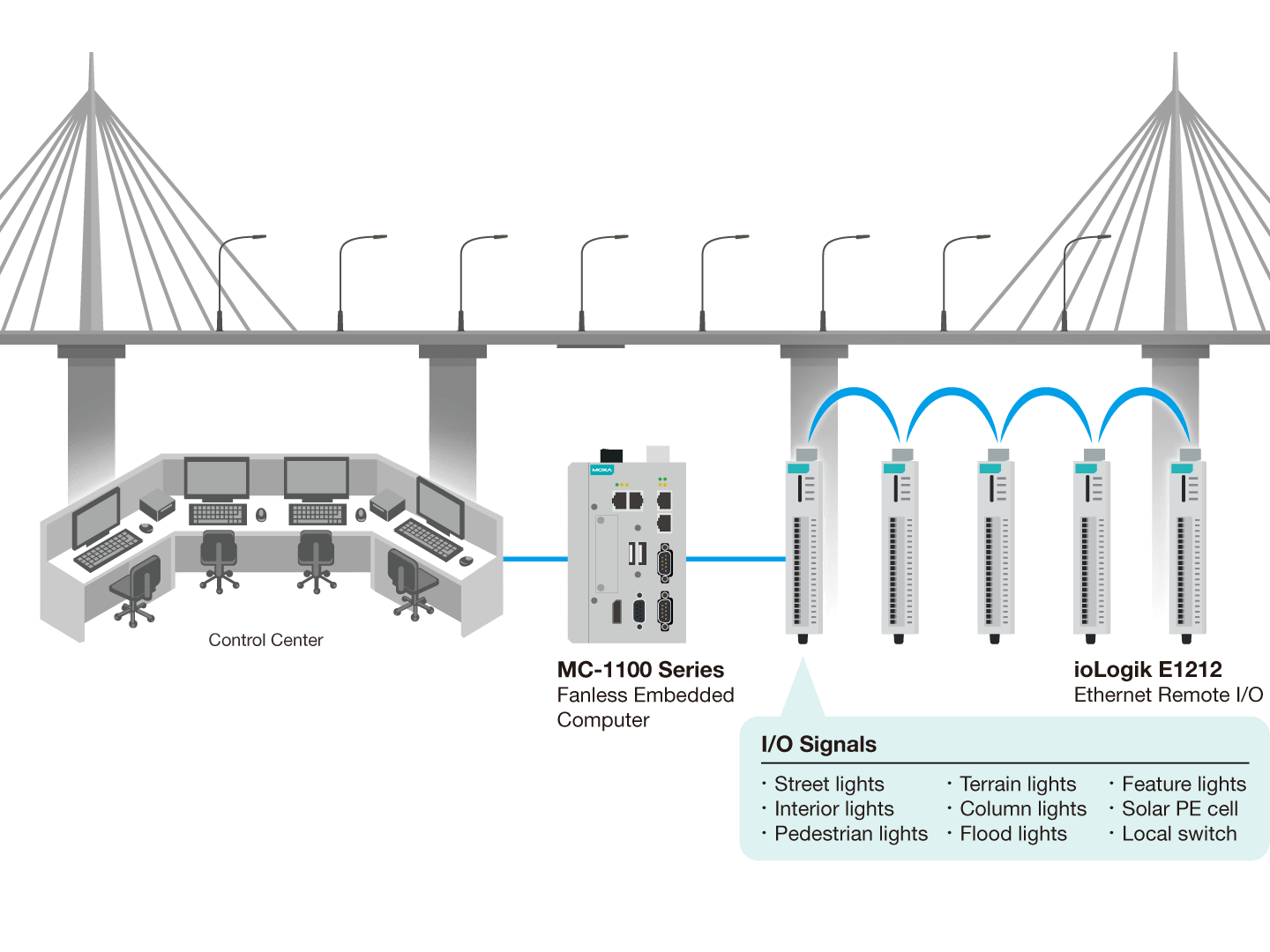

From bridges to airports, Moxa’s remote I/Os provide dependable control of outdoor systems such as lighting, roadside cabinets, and field devices—featuring a compact, rugged design engineered for harsh environments.
Data Center

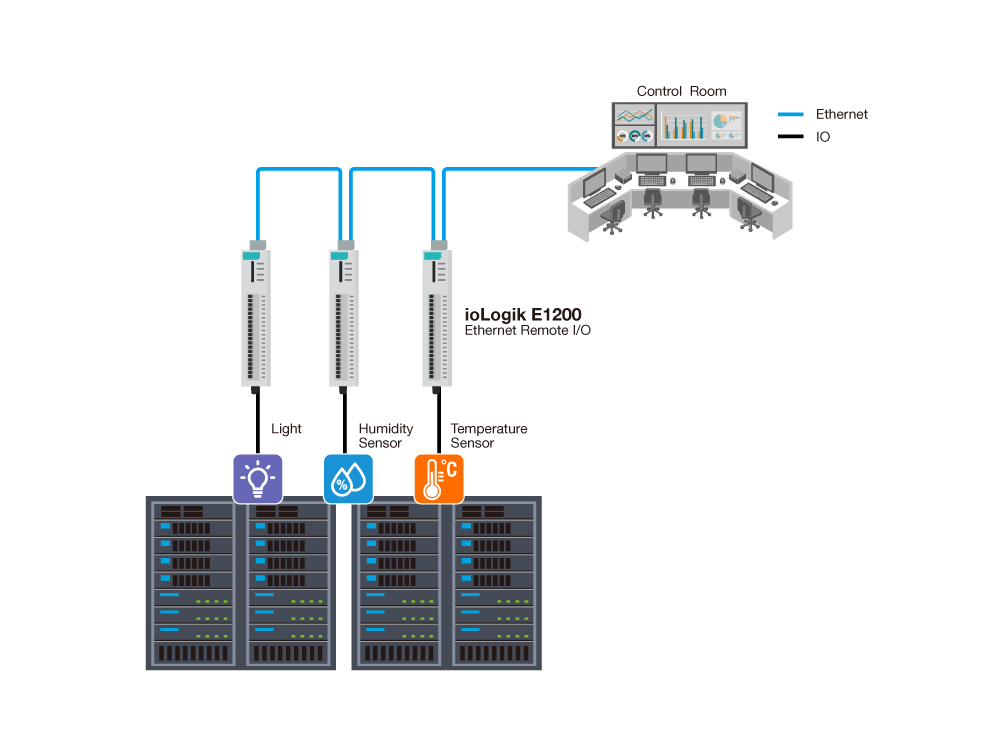

Whether it's temperature monitoring, integrating power meters, or upgrading legacy systems, Moxa remote I/Os provide flexible, space-efficient solutions that seamlessly connect to IT systems through Modbus or SNMP.
Manufacturing
From factory emissions to machine status signals, Moxa remote I/Os enable digital transformation with simple installation, versatile I/O support, and seamless integration with MES or SCADA platforms.
Selection Guide
| Remote I/Os |
|---|
| I/O |
| Front-end logic |
| Ethernet port |
| Serial |
| Northbound protocol |
| Active protocol |
| Southbound protocol |
| Operating Temp. range |
| Standards and Certifications |
ioLogik E1200 Series
|
ioLogik R1200 Series
|
ioLogik 2500 Series
|
ioThinx 4510 Series
|
|---|---|---|---|
| DI, DO, Relay, AI, AO, RTD, TC | DI, DO, Relay, AI, AO | DI, DO, AI (Relay, AO, RTD, TC expandable) | DI, DO, Relay, AI, AO, RTD, TC expandable by 45MR Series |
| - | - | Click&Go Plus | - |
| 2 | - | 4 | 2 |
| - | 2 x RS-485 | 2 x RS-232/422/485 | 1 x RS-232/422 or 2 x RS-485 |
| Modbus TCP server (slave) EtherNet/IP adapter SNMPv1/v2c RESTful API | Modbus RTU Server (Slave) | Modbus TCP server (slave) SNMPv1/v2c/v3 RESTful API | Modbus TCP server (slave) SNMPv1/v2c/v3 RESTful API via TLS |
| Moxa AOPC (Active tag) SNMPv1 Trap | - | Moxa AOPC (Active tag) SNMPv1/v2c Trap CGI command | MQTT via TLS SNMPv1/v2c/v3 Trap SNMPv2c/v3 Inform |
| - | - | Modbus TCP client (master) Modbus RTU client (master) | Modbus RTU client |
| Standard models: -10 to 60°C (14 to 140°F) Wide temp. models: -40 to 75°C (-40 to 167°F) | Standard models: -10 to 75°C (14 to 167°F) Wide temp. models: -40 to 85°C (-40 to 185°F) | Standard models: -10 to 60°C (14 to 140°F) Wide temp. models: -40 to 75°C (-40 to 167°F) | Standard models: -20 to 60°C (-4 to 140°F) Wide temp. models: -40 to 75°C (-40 to 167°F) |
| CID2, ATEX Zone 2, CE, FCC, UL | CE, FCC, UL | CID2, ATEX Zone 2, CE, FCC, UL | CID2, ATEX Zone 2, CE, FCC, UL |
