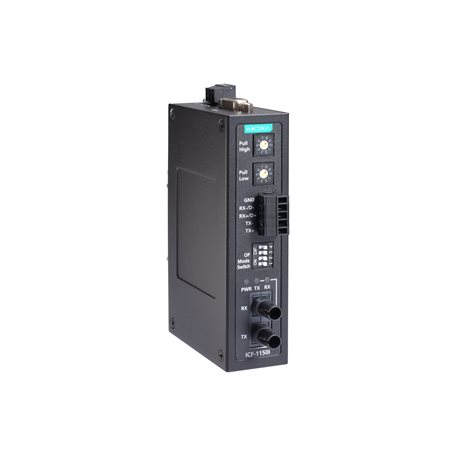

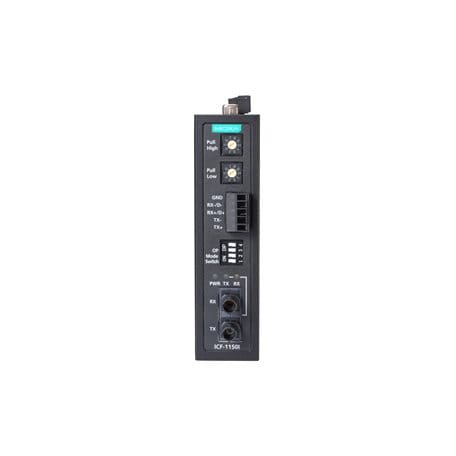

MOXA ICF-1150I-S-SC-IEX Serial to Fiber Converter
AED 2,572
MOXA ICF-1150I-S-SC-IEX Introduction
The ICF-1150 serial-to-fiber converters transfer RS-232/RS-422/RS-485 signals to optical fiber ports to enhance transmission distance. When an ICF-1150 device receives data from any serial port, it sends the data through the optical fiber ports. These products not only support single-mode and multi-mode fiber for different transmission distances, but models with isolation protection are also available to enhance noise immunity. The ICF1150 products feature three-way communication and a rotating switch to set the pull high/low resistor for onsite installation.
You can also find the ICF-1150I-M-ST-T, ICF-1150-M-ST, and ICF-1150-M-SC models in the ICF-1150 Series.
Enjoy online features to order the MOXA ICF-1150I-S-SC-IEX Serial to Fiber Converter with a price match guarantee, and experience cost-effective delivery service, offered through our Middle East branches (UAE (Dubai, Abu Dhabi), KSA (Al Khobar, Riyadh), Kuwait, Qatar, and Oman).
MOXA ICF-1150I-S-SC-IEX Certifications
MOXA ICF-1150I-S-SC-IEX Features
- Hazardous Locations: UL/cUL Class I Division 2 Groups A/B/C/D, ATEX Zone 2, IECEx
- 1 x RS-232/422/485 Serial port and 1 x 100Mbps F(x) single-mode port with SC connector
- 12 to 48 VDC input power
- Metal body
- 0 to 60°C operating temperature
- 2kV isolation
converter : Converter specifications | |
Data transfer speed | 0.05Kbps to 921.6Kbps |
Maximum data transmission distance | 40Km on fiber |
Minimum output power converter | -5dBm |
Sensitivity to receiving information | -25dBm |
Wavelength | Typical (nm): 1310nm |
converter : Power Requirements | |
Maximum power consumption | - |
Power Consumption (Output Adapter) | 300 mA @ 12 to 48 VDC |
Power Input Plugin ( Redundant ) | No |
converter : Standards and protocols | |
Point-to-point topology | No |
Ring topology | No |
RS-232 Signals | TxD, RxD, GND |
RS-422 Signals | TxD+, TxD-, RxD+, RxD-, GND |
RS-485-2w Signals | Data+, Data-, GND |
converter : Interface | |
10/100Mb RJ45 (Megabit) Ports | No |
100Mb Fiber optic single mode (Megabit) Ports | Yes : 1 x SC Port |
10/100/1000Mb (Gigabit) POE Ports | No |
100Mb Fiber optic multi mode (Megabit) Ports | No |
10/100/1000Mb RJ45 (Gigabit) Ports | No |
1000Mb SFP Fiber optic (Gigabit) Ports | No |
100Mb SFP Fiber optic (Megabit) Ports | No |
Number of 10/100Mb PoE port | No |
USB | No |
DSL | No |
Serial port | Yes : 1 x RS-232/422/485 Port |
Other ports | No |
converter : General | |
Fan / Fanless | Fanless |
MTBF | 792,085 hour |
Require cable diameter | G.652 |
converter : Physical Characteristics | |
Dimensions | 30.3 x 70 x 115 mm (1.19 x 2.76 x 4.53 in) |
Housing | Metal |
Installation | Din-rail |
Isolation | Yes : 2KV |
Operating Temperature | 0 to 60 ° C |
Operation Humidity | 5% to %95 non-condensing |
Protection against excessive consumption | - |
Protection against reverse flow | - |
Standards and Certifications | Safety: UL 508; Hazardous Location: UL/cUL Class I Division 2 Groups A/B/C/D, ATEX Zone 2 EEx nC IIC, IECEx; EMC: EN 55032/24; EMI: CISPR 32, FCC Part 15B Class B; EMS: EN 61000-4-2 (ESD): Contact: 8 kV; Air: 15 kV, EN 61000-4-3 (RS): 80 MHz to 1 GHz: 3 V/m, EN 61000-4-4 (EFT): Power: 4 kV; Signal: 2 kV, EN 61000-4-5 (Surge): Power: 4 kV; Signal: 0.5 kV, EN 61000-4-6 (CS): 150 kHz to 80 MHz: 3 V/m, EN 61000-4-8 (PFMF); Green Product: RoHS, CRoHS, WEEE; Freefall: IEC 60068-2-32; Standard: Telcordia (Bellcore), GB; Water and Dust Proof: IP30 |
Storage Temperature | -40 to 85 ° C |
Weight | 0.33Kg |
converter : LED Indicators | |
LED Per Port | Yes |
Power | Yes |
converter : Package Checklist | |
Hardware installation guide | Yes |
Power adapter | No |
Power cable | No |
