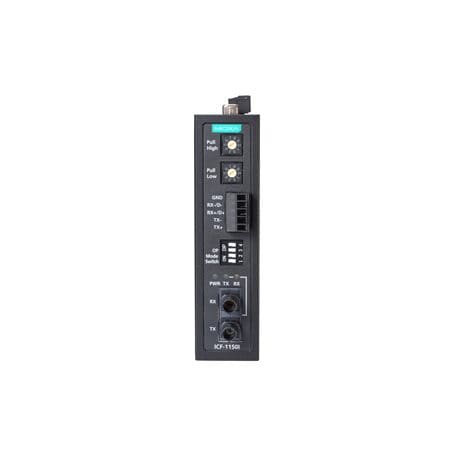

MOXA ICF-1150I-S-SC-T Introduction
The Moxa ICF-1150I-S-SC-T serial to fiber converter is a robust industrial solution designed to extend communication distances. It converts RS-232/RS-422/RS-485 signals into optical fiber signals. This is excellent for applications where long-distance communication and enhanced data integrity are required, such as in the Oil and Gas and Factory Automation industries. This industrial serial to fiber converter features three-way communication, allowing it to transfer data across multiple channels. It also includes a rotary switch for easy adjustment of the pull high/low resistor, a feature that enhances flexibility during on-site installation. The RS-485 interface of the Moxa ICF-1150I-S-SC-T supports multidrop or daisy-chain connections to enable system engineers to link several serial devices, such as meters, RTUs, and readers, on the same bus. With increasing impedance from multiple devices on the bus, the ability to tune the pull high/low resistor without removing the converter from its DIN rail mounting is a significant advantage. This converter is the cornerstone of industrial edge connectivity solutions that facilitate reliable and adaptable communication capabilities.
Flawless Serial Converter with Single-mode SC Connector
The Moxa ICF-1150I-S-SC-T converter offers advanced features that make it ideal for demanding industrial applications. It includes 2 ports that comply with RS-232, RS-422, and RS-485 serial standards to render versatility across multiple communication systems. With a baud rate ranging from 50 bps to 921.6 kbps, including support for non-standard baud rates, this ICF-1150I-S-SC-T converter is adaptable to a wide range of data transmission speeds. For RS-485, the ADDC (automatic data direction control) feature serves as uninterrupted flow control, while the 5-pin terminal block and single-mode SC connector offer flexible installation options. Additionally, the converter is equipped with 2 kV isolation to present protection against electrical surges, further enhancing its reliability. The ICF-1150I-S-SC-T is a critical component of the Moxa serial converter family, offering high-performance communication in industrial environments. The ICF 1150I S SC T endorses secure and consistent data transmission, even in complex systems.
Wide Operating Temperature and Durable Design
Designed to withstand extreme industrial environments, the Moxa ICF-1150I-S-SC-T operates reliably within a wide temperature range of -40 to 85°C (-40 to 185°F). This broad temperature tolerance makes it suitable for both hot and cold climates to serve continuous operation in challenging conditions. The converter is housed in a durable metal casing, which delivers protection from physical damage and environmental factors. Weighing just 330 g (0.73 lb), the Moxa ICF 1150I S SC T is lightweight yet rugged, making it easy to install on a DIN rail, a standard mounting option in industrial settings. Additionally, it is designed to operate in environments with ambient relative humidity ranging from 5 to 95% (non-condensing) to maximize resilience against moisture. For more detailed specifications and installation guidelines, refer to the Moxa ICF-1150I-S-SC-T datasheet. As a trusted Moxa RS-232/422/485 to fiber converter, this device excels in industrial applications requiring high performance and durability.
MOXA ICF-1150I-S-SC-T Certifications
The Moxa ICF-1150I-S-SC-T serial to fiber converter has the greatest capability to meet stringent safety and environmental standards to guarantee reliable performance in hazardous and industrial settings. The device is certified for safety, EMC, EMI, EMS, and vibration to ensure that it operates efficiently in environments with potential electromagnetic interference or mechanical stress. Additionally, it is certified for hazardous locations under UL/cUL Class I Division 2 Groups A/B/C/D and ATEX Zone 2, suitable for use in areas where explosive gases or dust may be present. These certifications confirm the converter's ability to maintain safe and stable communication in volatile industrial environments. This RS-232/422/485 to fiber converter delivers consistent, secure data transmission in critical applications. That is exactly why the Moxa serial converters are a trusted choice for industrial connectivity solutions. Whether in factory automation or the Oil and Gas sectors, the Moxa converter safeguards high reliability and safety.
MOXA ICF-1150I-S-SC-T Features
- 1 x RS-232/422/485 Serial port and 1 x 100Mbps F(x) single-mode port with SC connector
- 12 to 48 VDC input power
- Metal body
- -40 to 85°C operating temperature
- 2kV isolation
Easy World Automation offers a wide variety of industrial devices in the Middle East (UAE (Dubai, Abu Dhabi), KSA (Al Khobar, Riyadh), Kuwait, Qatar, and Oman), such as the MOXA ICF-1150I-S-SC-T Serial to Fiber Converter. You can buy online at the lowest price and enjoy the benefits of a low-cost and on-time delivery service.
