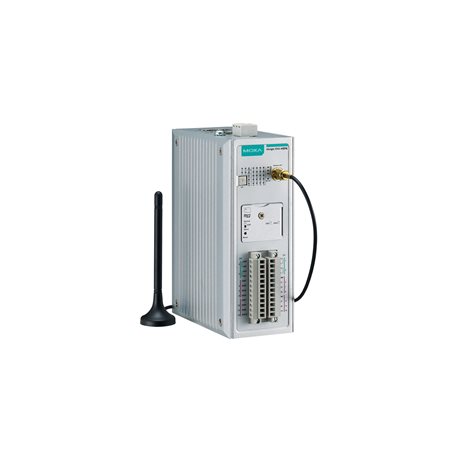

ioLogik 2500 smart Ethernet remote I/O devices feature unique hardware and software designs, making them ideal solutions for a variety of industrial data acquisition applications. The ioLogik 2500’s hardware design includes a 4-port unmanaged Ethernet switch and 2 serial ports, enabling it to seamlessly connect to a variety of field devices.
One of the Ethernet ports can be used to link to 8 daisy-chained ioLogik E1200 expansion modules to provide more than 100 channels. The ioLogik 2500 acts as the “head” unit, with Click&Go Plus logic used to control the entire I/O array. Most importantly, a single IP is all that is required to connect the entire I/O array to your network, providing the perfect solution for industrial field sites that have an insufficient number of IP addresses.
- 8 x DI and 8 x Configurable DIO
- 2 x RS-232/422/485 serial ports
- 4-port unmanaged switch built in for linking to Ethernet devices
- 12 to 48 VDC power input
- Metal body
- -40 to 75°C operating temperature
|Remote I/O : Interface|
|Digital Input and Output||Yes : 8 digital inputs|
|Adjustable digital input and output||Yes : 8 adjustable digital inputs and outputs|
|Analog Input and Output||No|
|Thermal sensor input (RTD)||No|
|LAN||Yes : 4 RJ-45 10/100Mbps Ports|
|Serial port||Yes : 2 RS-232/422/485 Ports|
|Remote I/O : Standards and protocols|
|Protocols||Modbus/TCP (slave), TCP/IP, UDP, DHCP, BOOTP, SNMP, HTTP, CGI, SNTP, SMTP|
|Remote I/O : General|
|Compatible Softwares||MX-AOPC UA Server, MXIO|
|Remote I/O : Physical Characteristics|
|Standards and Certifications||Safety:UL 508; EMC:EN 55022/24, EN 61000-6-2/6-4; EMI:CISPR 22, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV; IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m; IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV; IEC 61000-4-5 Surge: Power: 1 kV; IEC 61000-4-6 CS: 3 V; IEC 61000-4-8; Hazardous Location:Class 1 Division 2; ATEX Zone 2; Green Product:RoHS, CRoHS, WEEE|
|Operating Temperature||-40 to 75 ° C|
|Storage Temperature||-40 to 85 ° C|
|Operation Humidity||5% to %95 Non-condensing|
