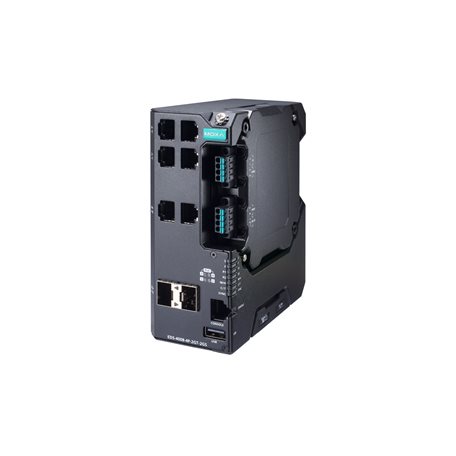

MOXA EDS-4008-4P-2GT-2GS-LVA-T Introduction
Introducing the Moxa EDS-4008-4P-2GT-2GS-LVA-T managed ethernet switch, a robust solution for your network infrastructure needs. This managed Gigabit Ethernet switch features 4 x 10/100BaseT(X) PoE ports, 2 x 10/100/1000BaseT(X) ports, and 2 x 100/1000BaseSFP ports. It is an ideal choice for industries such as Power Utility, Railway Transportation, Road Transportation, Marine, Factory Automation, and Water and Wastewater.
Reliable Power Management for Critical Applications
With an Input Voltage of 48 VDC and a single input configuration, the Moxa EDS-4008-4P-2GT-2GS-LVA-T Ethernet Switch ensures stable performance in demanding environments. The operating voltage ranges from 44 to 57 VDC, with a recommendation of >52 VDC for optimal PoE+ output. This Moxa layer 2 managed ethernet switch can manage maximum power consumption of 240 W with PoE, delivering up to 90 W of PoE power per port.
Rugged Design for Extreme Conditions
Weighing 840 g (1.85 lb), the Moxa EDS-4008-4P-2GT-2GS-LVA-T managed switch offers versatile installation options, including DIN-rail mounting and wall mounting (with an optional kit). Encased in durable metal housing, this Moxa ethernet switch operates within a wide operating temperature range of -40 to 75°C (-40 to 167°F), making it resilient in harsh industrial environments. It can be stored at temperatures between -40 to 85°C (-40 to 185°F) and functions reliably in ambient relative humidity ranging from 5 to 95% (non-condensing). This product is an excellent addition to the Moxa industrial network infrastructure.
For a deeper dive into the technical specifications and features of this product, please refer to the Moxa EDS-4008-4P-2GT-2GS-LVA-T datasheet.
MOXA EDS-4008-4P-2GT-2GS-LVA-T Certifications
The Moxa EDS-4008-4P2GT-2GS-LVA-T managed ethernet switch meets rigorous industrial standards, including UL 61010-2-201 and EN 62368-1 (LVD) for safety, as well as EMC, EMI, and EMS requirements. It is approved by maritime classification societies DNV, ABS, NK, and LR and complies with EN 50121-6 for railway systems. The switch is built to withstand shock and vibration according to IEC 61850-3 and IEEE 1613 Class 3 standards. Furthermore, it offers advanced industrial cybersecurity with certifications under IEC 62443-4-1 and IEC 62443-4-4.
MOXA EDS-4008-4P-2GT-2GS-LVA-T Features
- 4 x 10/100Mbps T(X) PoE ports, 2 x 10/100/1000Mbps T(X) ports, 2 x 100/1000Mbps SFP slots
- DIN-rail
- Metal body
- -40 to 75°C operating temperature
- Input Voltage: 48 VDC, Redundant dual inputs
You can also find the EDS-4008-4P-2GT-2GS-LVA, EDS-4008-2MST-HV-T, and EDS-4008-2MSC-HV models in the EDS-4008 Series.
Place your order for industrial automation products, including the MOXA EDS-4008-4P-2GT-2GS-LVA-T Managed Ethernet Switch at a reasonable price, and explore convenient options to buy online through our website or inquire at our Middle East branches (UAE (Dubai, Abu Dhabi), KSA (Al Khobar, Riyadh), Kuwait, Qatar, and Oman). Enjoy the ease of online shopping and seamless transactions for all your industrial needs.
switch and hub : Interface | |
Number of ports | 8 Ports |
10/100Mb RJ45 (Megabit) Ports | No |
10/100/1000Mb RJ45 (Gigabit) Ports | Yes : 2 Ports |
100Mb Fiber optic multi mode (Megabit) Ports | No |
100Mb Fiber optic single mode (Megabit) Ports | No |
1000Mb SFP Fiber optic (Gigabit) Ports | Yes : 2 ports |
10/100Mb (Megabit) POE Ports | Yes : 4 ports |
100Mb SFP Fiber optic (Megabit) Ports | No |
10/100/1000Mb (Gigabit) POE Ports | No |
switch and hub : Features and capabilities | |
Backup | - |
switch and hub : LED Indicators | |
LED Per Port | Yes |
switch and hub : Power Requirements | |
Maximum power consumption | Without PoE: 11.22 W, With PoE: Max. 240 W for total PD power consumption @ 48 VDC input |
Power Consumption (Output Adapter) | - |
Power Input Plugin ( Redundant ) | Yes : 48 VDC |
switch and hub : General | |
Fan / Fanless | Fanless |
MTBF | 923,670 hours |
switch and hub : Switch specifications | |
Most forwarding speed | - |
Network working layers | Layer 2 |
Switch type | Managed |
Port Aggregation | - |
switch and hub : Physical Characteristics | |
Housing | Metal |
Installation | Din-rail |
Operation Humidity | 5% to %95 non-condensing |
Standards and Certifications | Industrial Cybersecurity : IEC 62443-4-1, IEC 62443-4-2; UL 61010-2-201, EN 62368-1 (LVD); EN 55022/24, EN 61000-6-2/-6-4; CISPR 32, FCC Part 15B Class A; IEC 61000-4-2 ESD: Contact: 8 kV Air: 15 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m, IEC 61000-4-4 EFT: Power: 4 kV Signal: 4 kV, IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Vibration, Shock, Freefall, Railway, Traffic Control |
Storage Humidity | - |
switch and hub : Standards and protocols | |
Protocols and work standards | STP, RSTP, Turbo Ring v2, Turbo Chain, Ring Coupling, Dual-Homing, Link Aggregation, Broadcast storm protection, Rate Limit, Trust access control, Static Port Lock, MAC Sticky, HTTPS/SSL, SSH, RADIUS, TACACS+, Login and Password Policy, SNTP, NTP Server/Client, NTP Authentication, IPv4/IPv6, TCP/IP, UDP, ICMP, ARP, RARP, TFTP, DNS, NTP Client, DHCP Server, DHCP Client, 802.1X, QoS, HTTPS, HTTP, Telnet, SMTP, SNMPv1/v2c/v3, RMON, Syslog |
Protocols and management standards | IPv4/IPv6, Flow control, Back Pressure Flow Control, DHCP Server/Client, ARP, RARP, LLDP, Port Mirror, Linkup Delay, SMTP, SNMP Trap, SNMP Inform, SNMPv1/v2c/v3, RMON, TFTP, SFTP, HTTP, HTTPS, Telnet, Syslog, Private MIB |
switch and hub : Package Checklist | |
Hardware installation guide | Yes |
Power adapter | No |
Power cable | No |
